PERFORMANCE
- Cooling Capacity (Btu/h):12,000
- Heating Capacity (Btu/h): 12,000
- EER(Btu/h)/w: 13
- COP(w/w): 3.81
- SEER2: 24.5
- HSPF2: 9.5
- Airflow (H/M/L): 620/560/490 m3/h
- Dehumidification (Pts/hr): 2.96
- Est. Cooling Area (Sq. Ft.): 750
- Voltage: 103/126~60Hz, 1Ph
- Rated Input(W):1450
- Rated Current(A): 15.41
- Min. Current (MCA) (A) :19
- Temperature Range (°F): 61-86
- Noise Level (H/M/L): 38/34/25 decibels
DIMENSIONS & WEIGHTS
Indoor Unit
- Approximate Shipping Weight (lbs): 25.4
- Approximate Net Weight (lbs): 20.9
- Shipping Dimensions (W×H×D) (inches): 35.1x14.1 x10.3
- Unit Dimensions (W×H×D) (inches): 33.0 x 11.5 x 7.9
Outdoor Unit
- Approximate Shipping Weight (lbs): 75
- Approximate Net Weight (lbs): 69.5
- Shipping Dimensions (W×H×D) (inches): 34.3 x 24.4x 15.7
- Unit Dimensions (W×H×D) (inches): 31.6 x 21.9 x 13.8
Line Set Length
- Copper Line Set(ft): 16
- Signal Cable(ft): 19
- Power Cord(ft):19
User Manual: Download
BREATHE FRESHER, SAVE MORE
Industrial Leading Efficiency

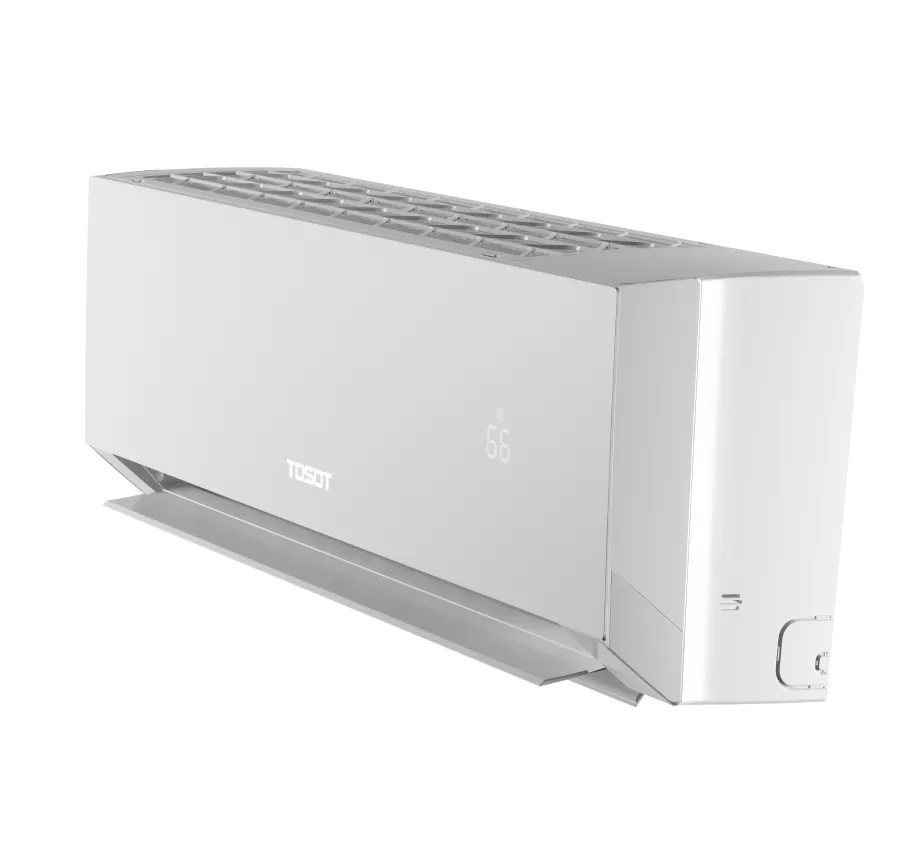

The TOSOT Aoraki Series mini split air conditioner offers energy-efficient cooling and heating with a SEER2 rating up to 24.5. Certified by ENERGY STAR and AHRI, it qualifies for tax credits.
Save Up to 36% on Your Energy Bills
Aoraki isn’t just efficient—it’s smart with your money. Compared to a 16 SEER system, it can lower your energy bills by up to 36%. Thanks to its inverter compressor, it avoids the energy waste of constant on-off cycling.
Cooling Savings
10 SEER VS. 21 SEER
Annual Energy Cost Only $75
*Based on 13.19 cents/KWh and 1320 yearly cooling hours average for United States. This stats is only for references.
Compatible w/ERV System
Breathe fresher air with an optional accessory! The Aoraki mini-splits AC series can be used with the ERV fresh air exchanger kit (not included) for two-way ventilation.
Sync or Independently
HEPA Filter
Flexible Installation

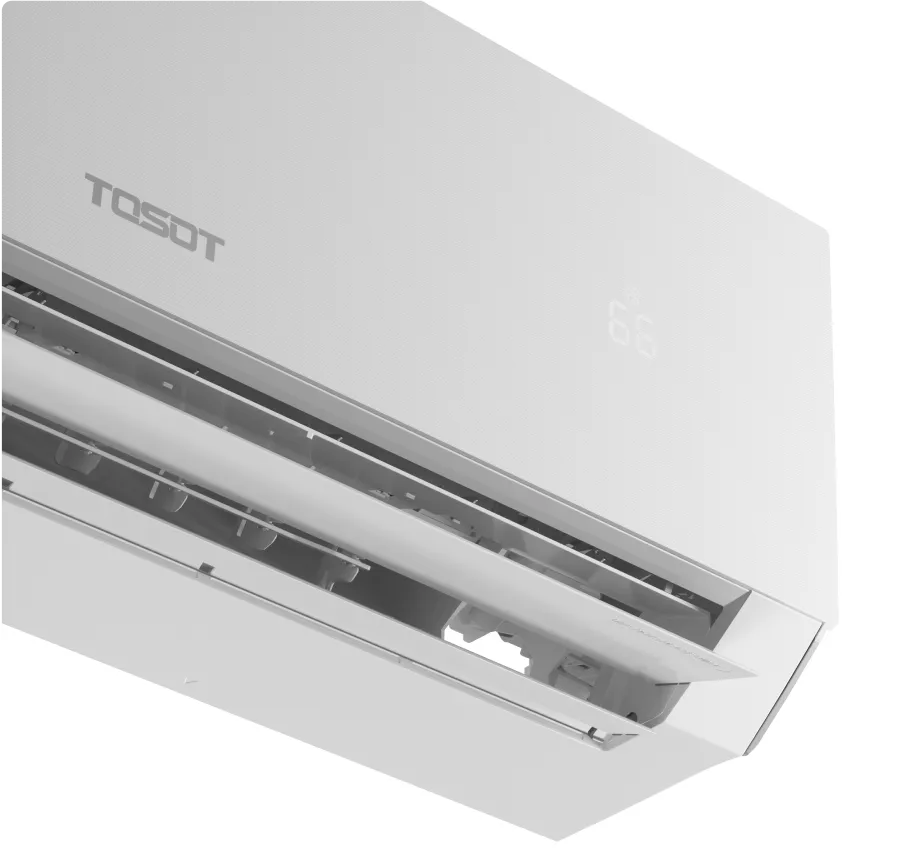

45° Angled air outlet
Less Buzz, More Breeze
The sound at low fan speed is ony 20db. You can sleep peacefully at night.
Comfort That Keeps Up with Your Life
The noise level of the indoor unit is only 24 dB, bringing you back to complete silence and keeping the noise of the compressor entirely out of your room. Your comfort will no longer be interrupted by a loud compressor.
24,000 BTU COOLING
Handles heat up to 122 ℉
24,000 BTU HEATING
Withstands cold down to -22 ℉
7 FAN SPEEDS
Delivers airflow up to 559 CFM
Smart Humidity Control
Unlike traditional ACs
that dry the air too much
the Aoraki mini-split
maintains humidity within
a comfortable range for
a more pleasant experience.
Humidity setting range
Remote Control
REMOTE CONTROL
VOICE CONTROL
"Turn on Aoraki air conditioner."
APP CONTROL
Auto Brightness Adjustment
Ready For DIY
All necessities are inclued
A basic installation set is included. Additional tools may be required for installation. DIY Installation is possible for ambitious DIYers.
Join Our DIY Community
Sizing Chart
Maximum Comfort, MInimum Cost
5 Year Standard Warranty
Cover both the compressor and parts
With over 30 years of manufacturing experience in the AC industry, we always strive to provide the highest quality product to all our customers. If you need installation services, please contact support@tosotdirect.com
