Key Features
- Exceptional 24-24.5 SEER Rating.
- Energy Star Certified with tax rebate eligibility.
- Compatible with ERV Systems.
- Operates in Extreme Temperatures from -22°F to 122°F
For full specifications and details, download the technical brochure.
PERFORMANCE
- Cooling Capacity (Btu/h):12,000
- Heating Capacity (Btu/h): 12,000
- EER(Btu/h)/w: 13
- COP(Btu/h)/w: 13
- SEER2: 24.5
- HSPF2: 9.5
- Airflow (H/M/L): 620/560/490 m3/h
- Dehumidification (Pts/hr): 2.96
- Est. Cooling Area (Sq. Ft.): 750
- Voltage: 103/126~60Hz, 1Ph
- Rated Input(W):1450
- Rated Current(A): 15.41
- Min. Current (MCA) (A) :19
- Max. Rating of Overcurrent Protective (A): 20
- Temperature Range (°F): 61-86
- Noise Level (H/M/L): 38/34/25 decibels
DIMENSIONS & WEIGHTS

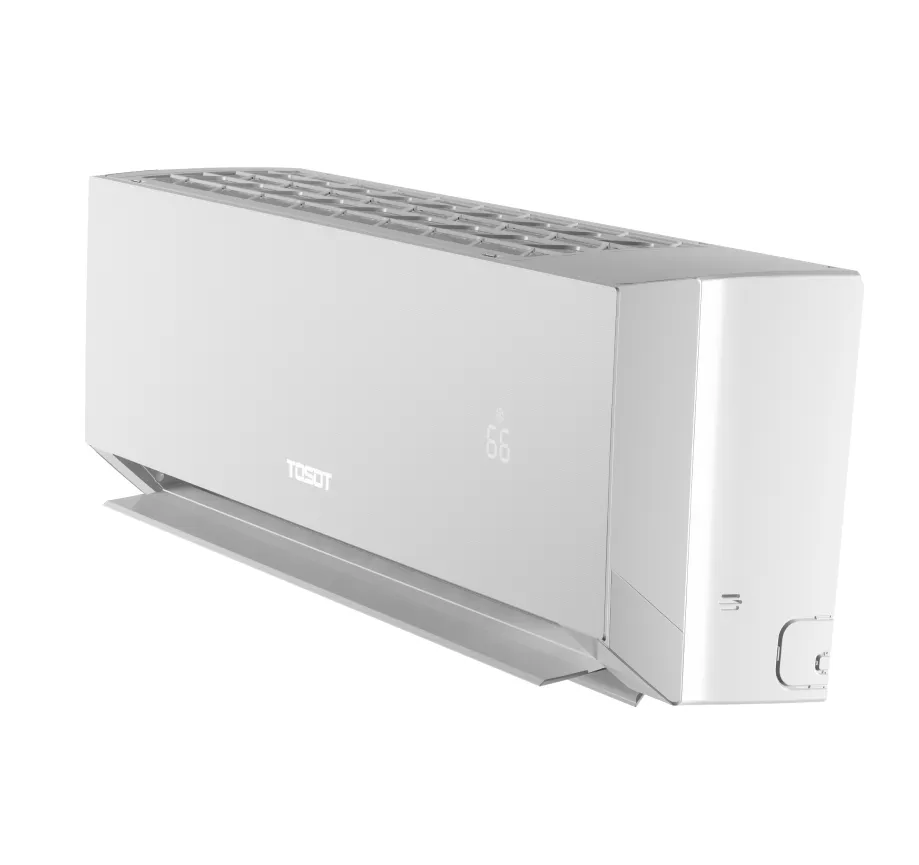

Indoor Unit
- Approximate Shipping Weight (lbs): 25.4
- Approximate Net Weight (lbs): 20.9
- Shipping Dimensions (W×H×D) (inches): 35.1x14.1 x10.3
- Unit Dimensions (W×H×D) (inches): 33.0 x 11.5 x 7.9

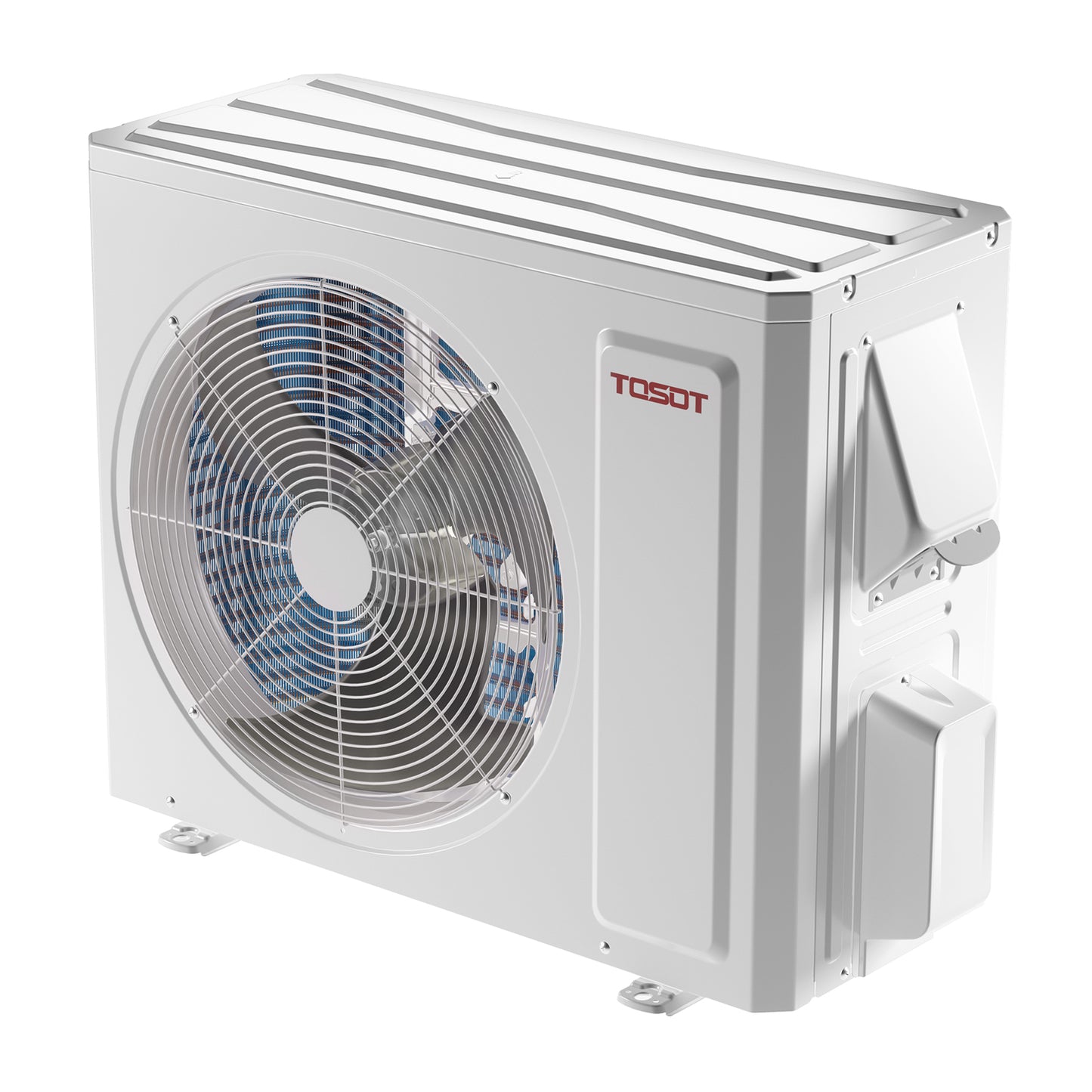

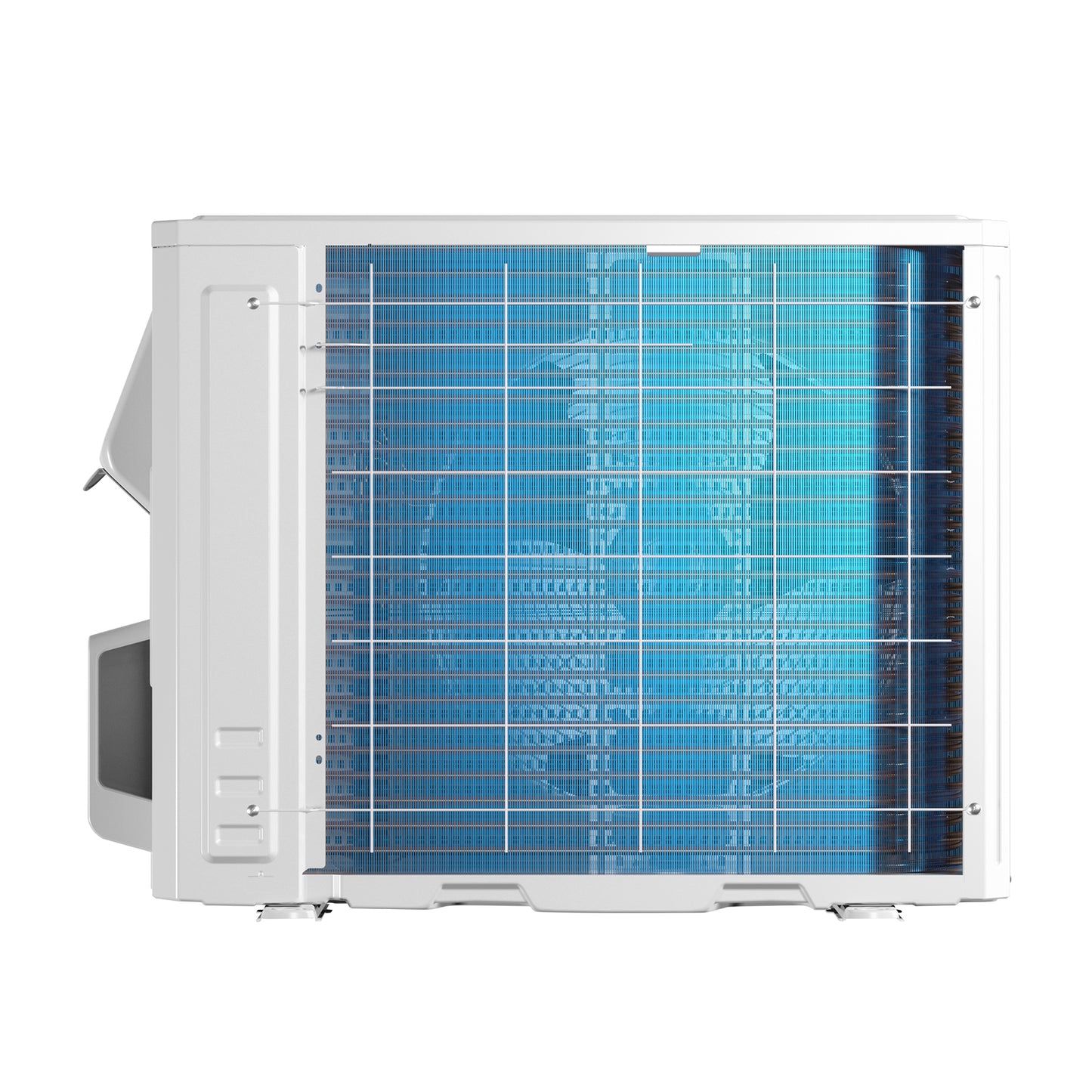

Outdoor Unit
- Approximate Shipping Weight (lbs): 75
- Approximate Net Weight (lbs): 69.5
- Shipping Dimensions (W×H×D) (inches): 34.3 x 24.4x 15.7
- Unit Dimensions (W×H×D) (inches): 31.6 x 21.9 x 13.8
Line Set Length
- Copper Line Set(ft): 16
- Copper Line Size: 1/4" & 1/2"
- Signal Cable(ft): 19
- Power Cord(ft):19

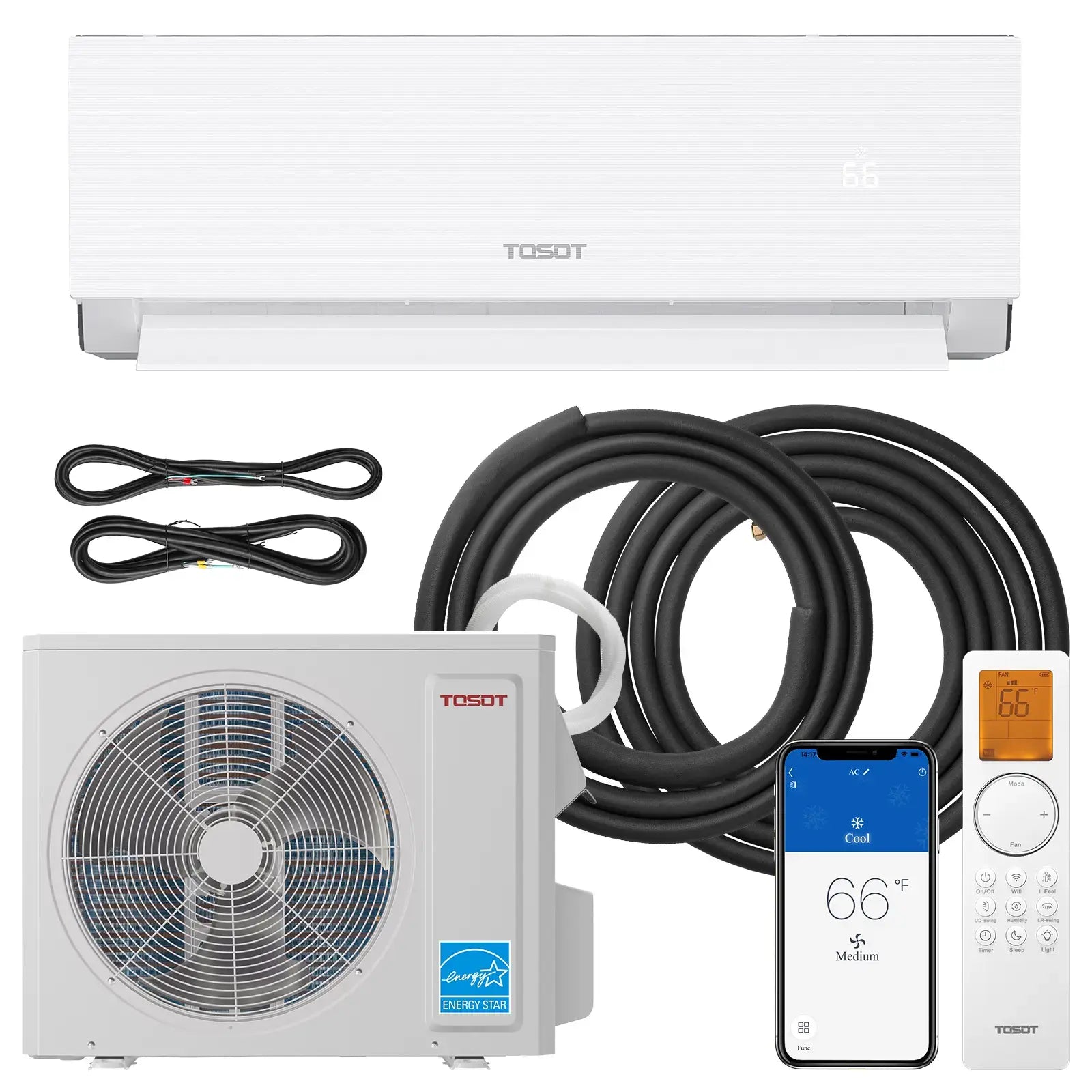

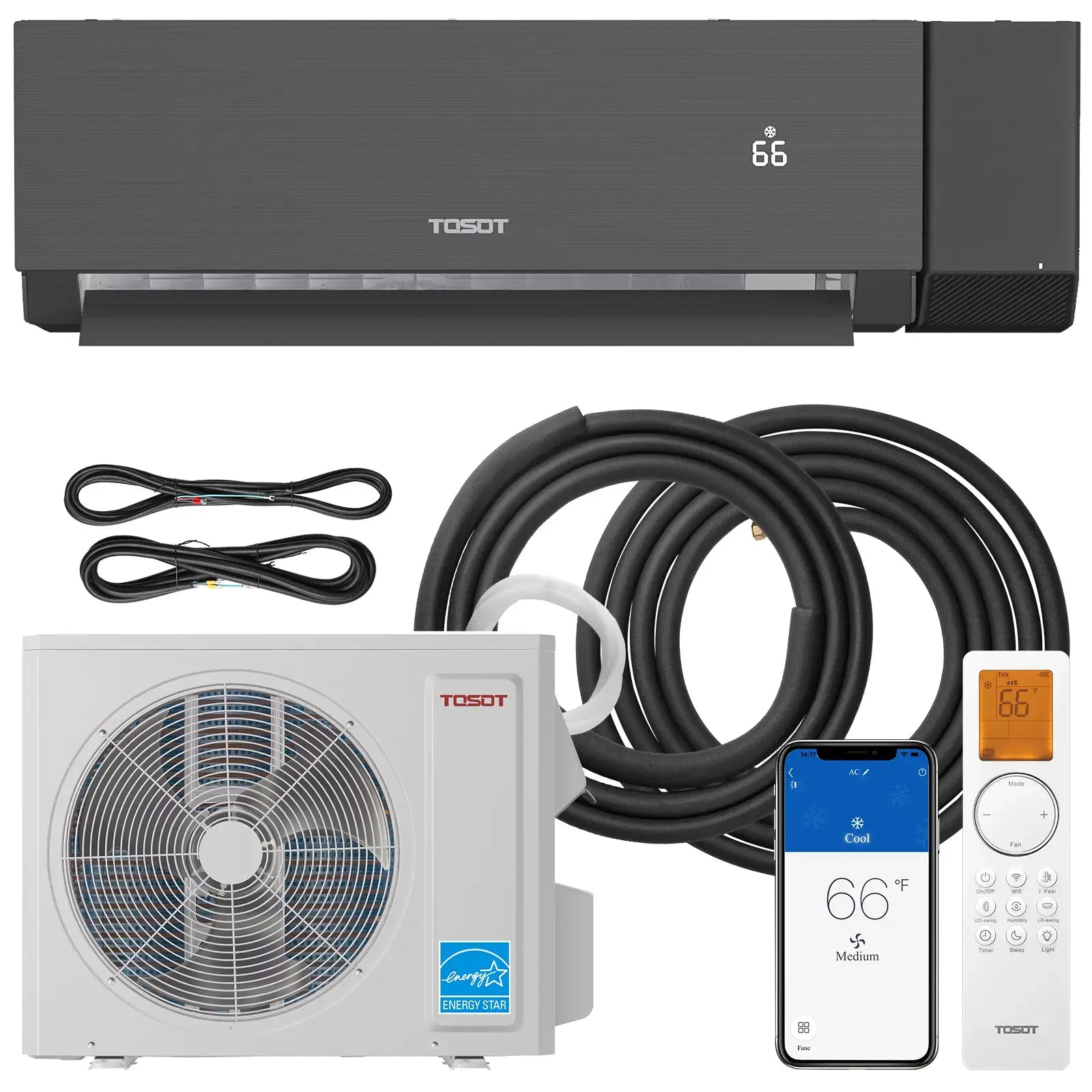

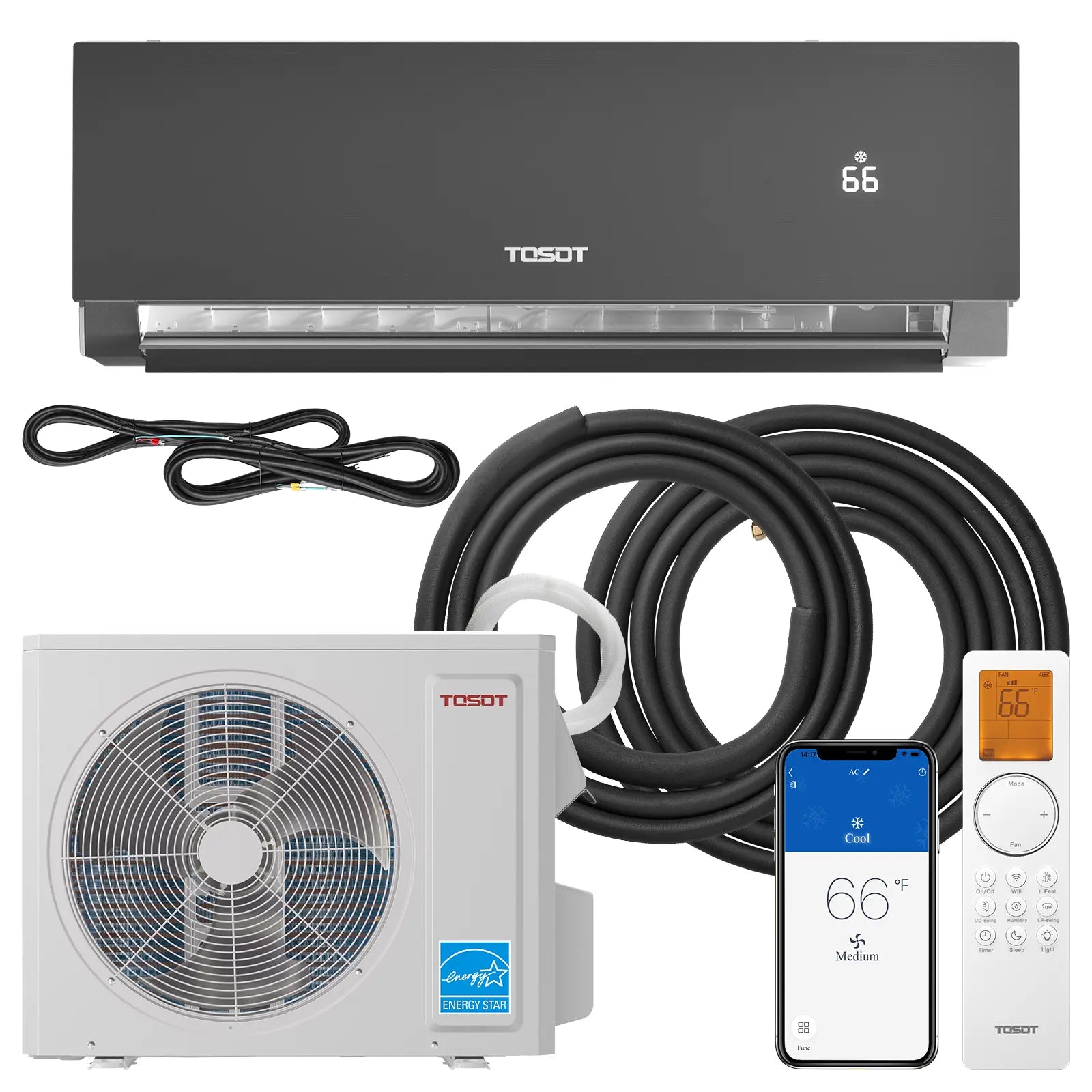

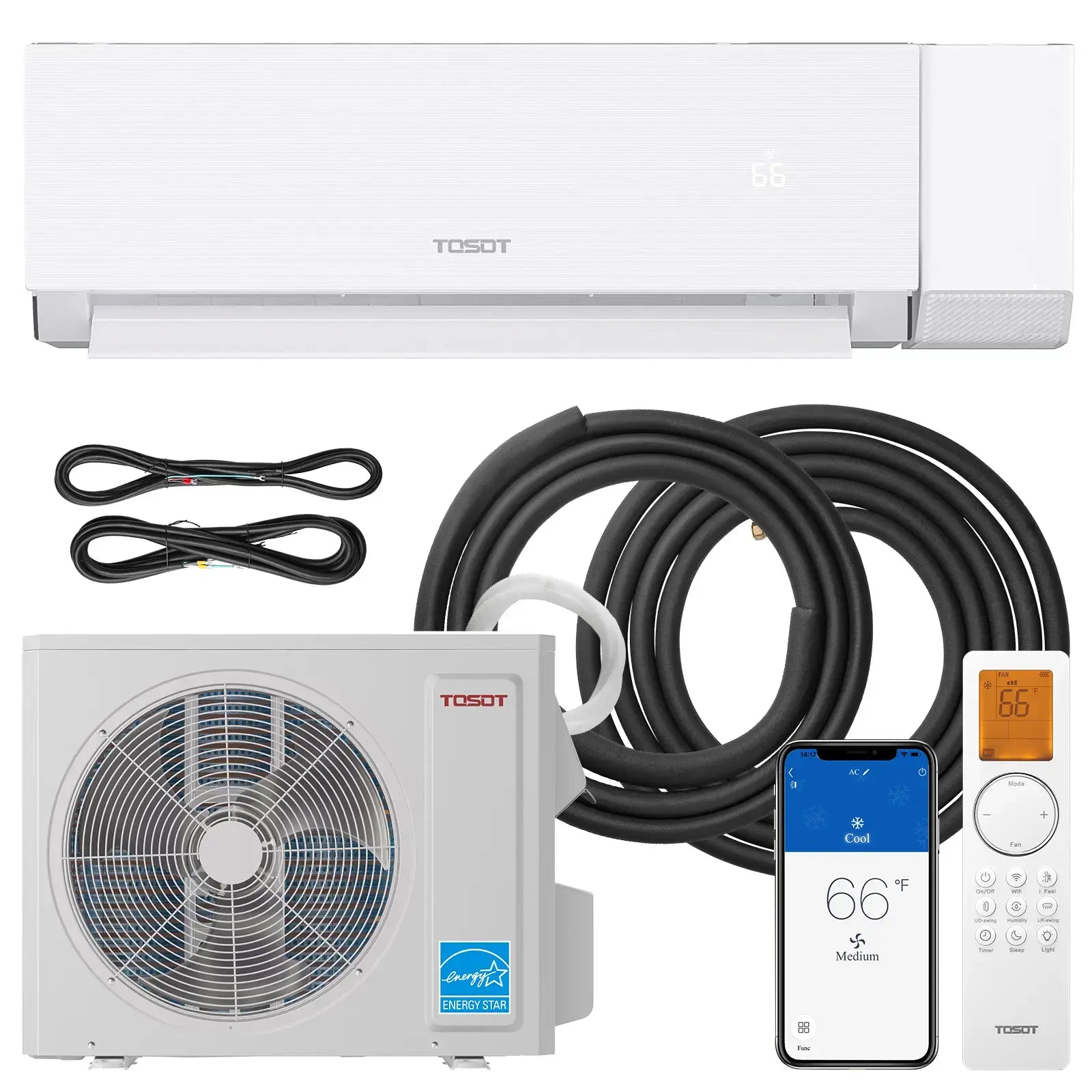

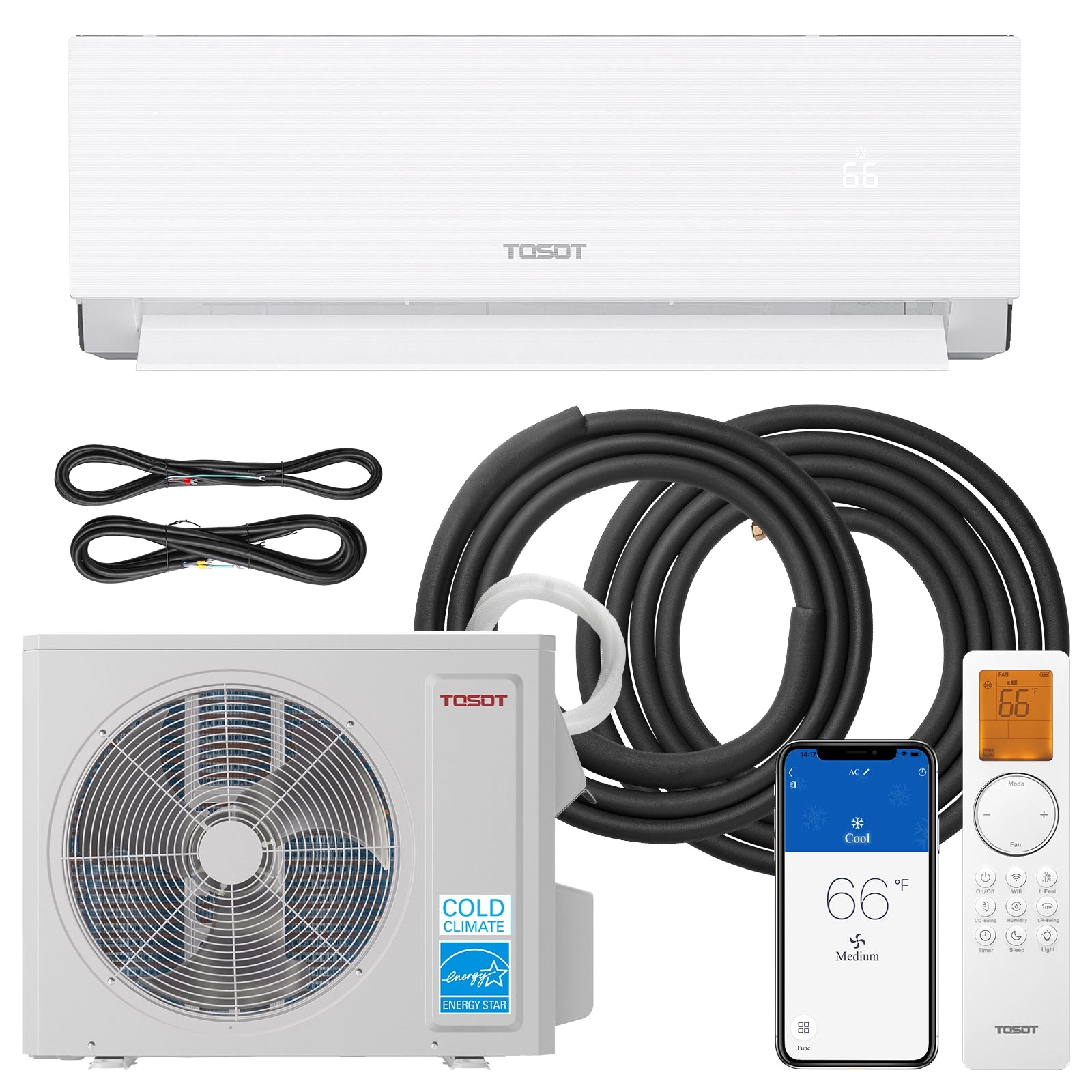

Aoraki 24.5 SEER2 12,000 BTU Heat Pump Mini Split AC w/ERV System-120V
AddressDrop
User Manual: Download
ERV User Manual: Download
What should I check before buying ERV system?
Confirm that your installation site allows for a hole to be drilled through a wall to route the fresh air pipe outdoors. The pipe is 35 inches (90 cm) long and extension pipes are not available. Ensure your wall’s thickness and layout allow the pipe to reach the exterior. If you're unsure, feel free to contact us with photos of your intended installation area for assessment.
Can the ERV system work independently?
The ERV system must first be wired to a compatible indoor unit. Once properly connected, it can operate independently to facilitate indoor-outdoor air exchange even when the air conditioner is turned off.
Can the ERV system work with my existing split AC?
No. This ERV system is specifically designed to be used with TOSOT Aoraki mini-split systems and is not compatible with other brands or models.
Does the ERV system need to be installed right next to the indoor unit?
Not necessarily. However, it must be connected to the indoor unit using a cable no longer than 3.9 ft (1.2 m). Please ensure the ERV is installed within this distance.
Can the ERV system be mounted on any wall?
We recommend installing the ERV on the indoor side of an exterior wall, as the fresh air pipe needs to pass through to the outside. The included pipe is 35 inches (90 cm) long, which may not be sufficient for interior walls or walls with extra thickness.
BREATHE FRESHER, SAVE MORE
Industrial Leading Efficiency
Save Up to 36% on Your Energy Bills
Aoraki isn’t just efficient—it’s smart with your money. Compared to a 16 SEER system, it can lower your energy bills by up to 36%. Thanks to its inverter compressor, it avoids the energy waste of constant on-off cycling.
Cooling Savings
16 SEER VS. 24.5 SEER
Annual Energy Cost Only $173
*Based on 13.19 cents/KWh and 1320 yearly cooling hours average for United States. This stats is only for references.

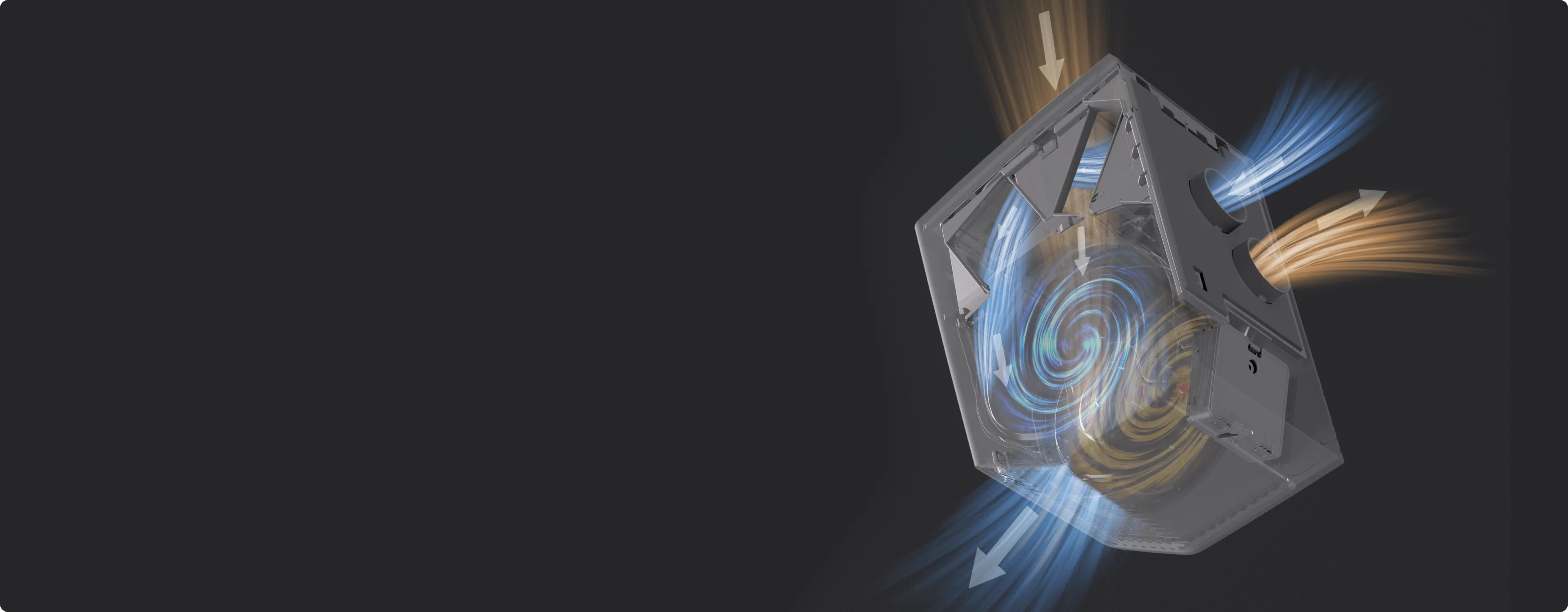

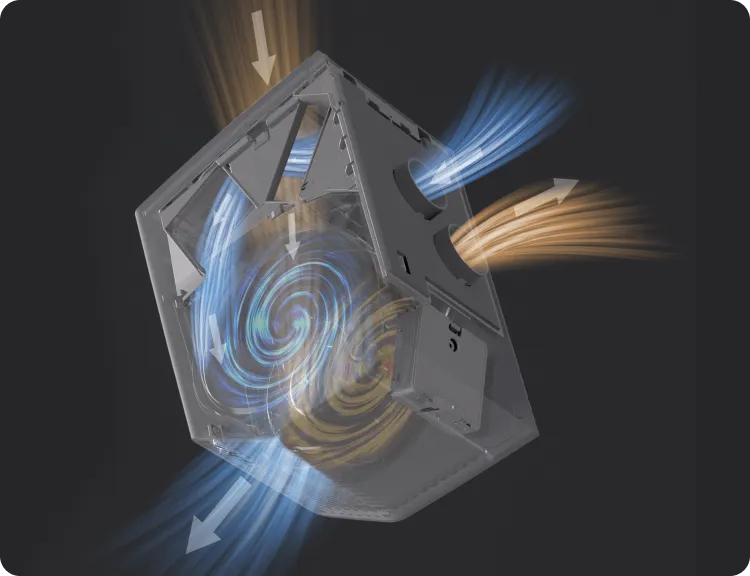

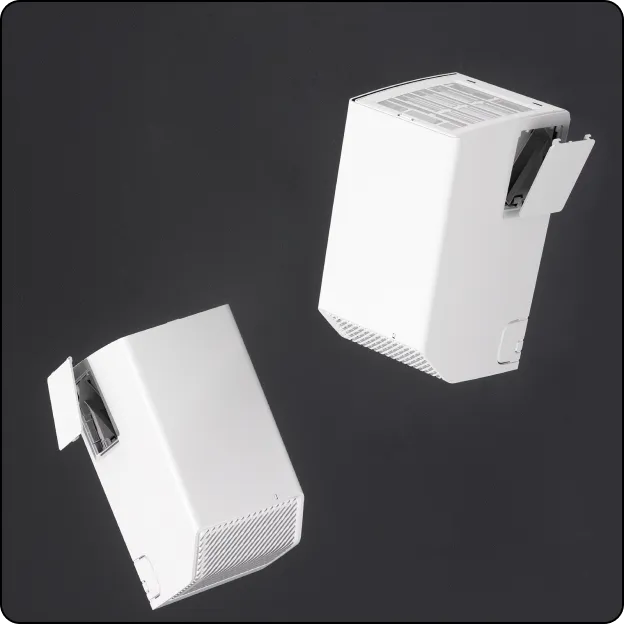

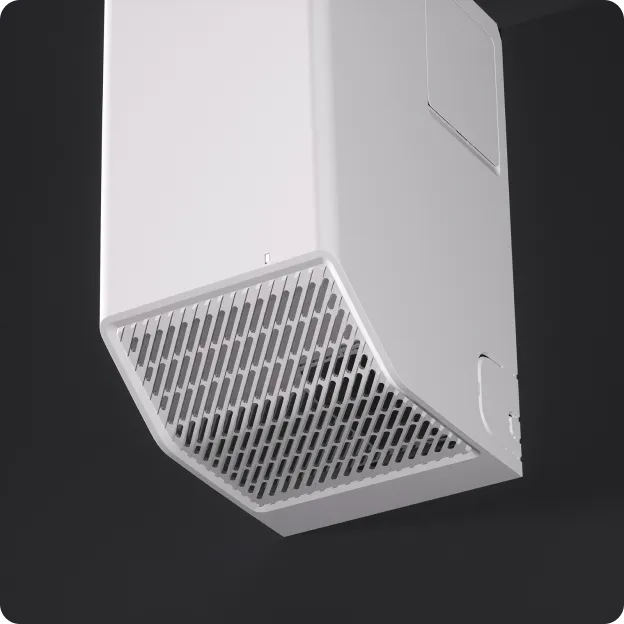

Compatible w/ERV System

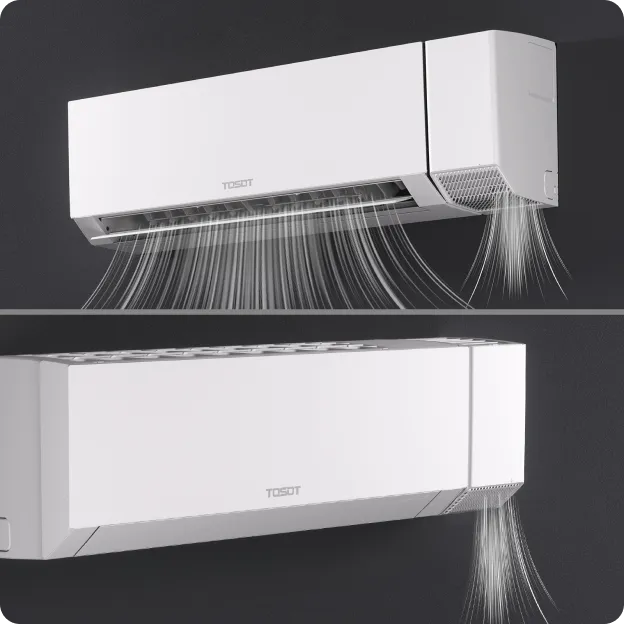

Sync or Independently

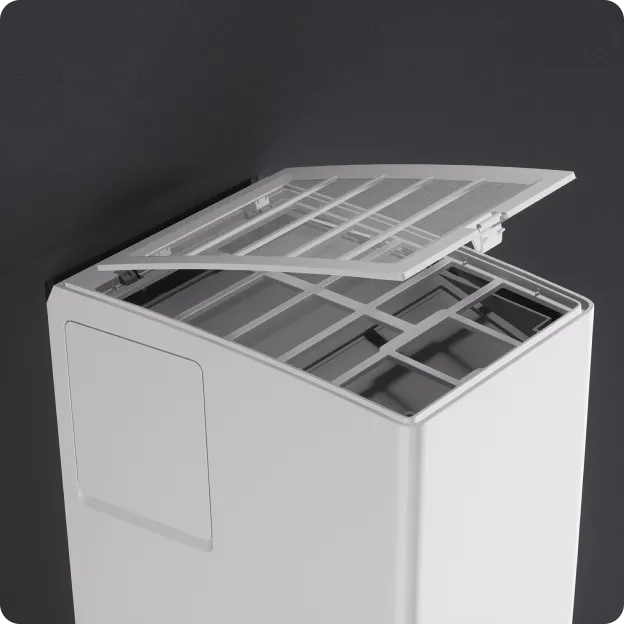

HEPA Filter

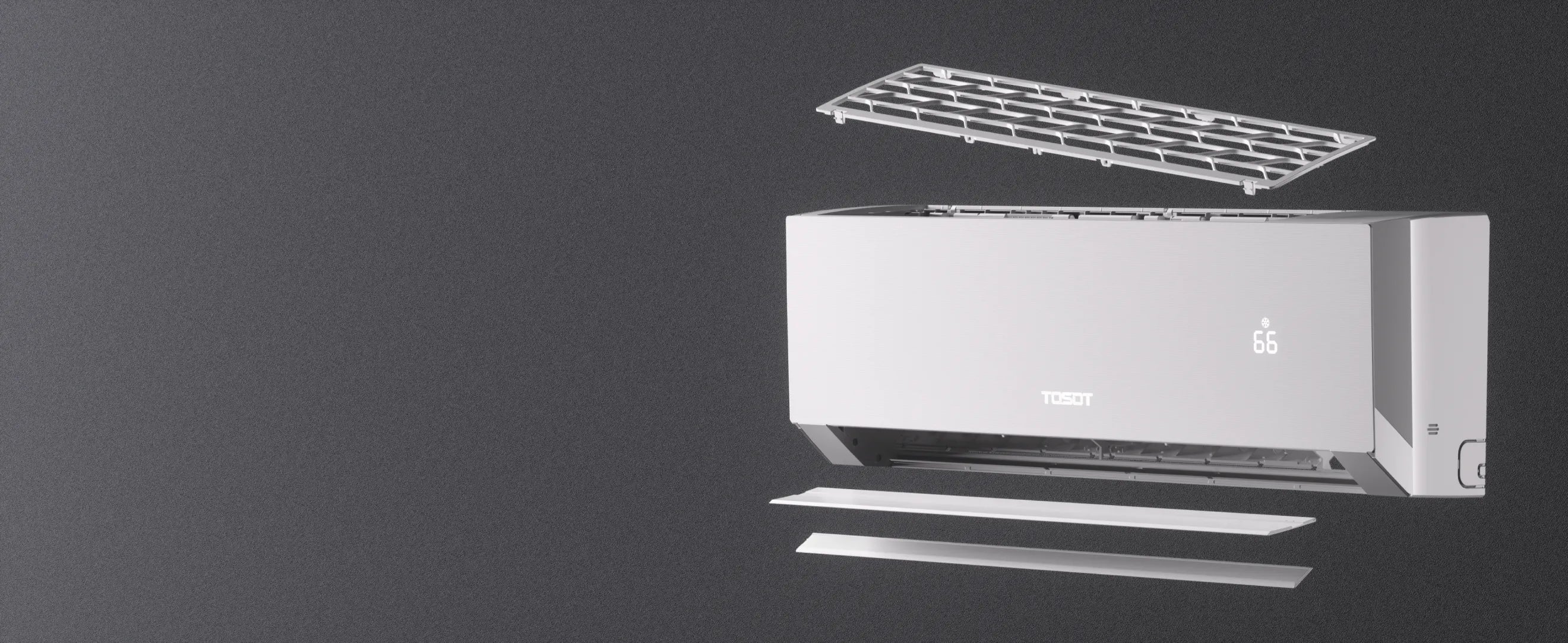

Flexible Installation

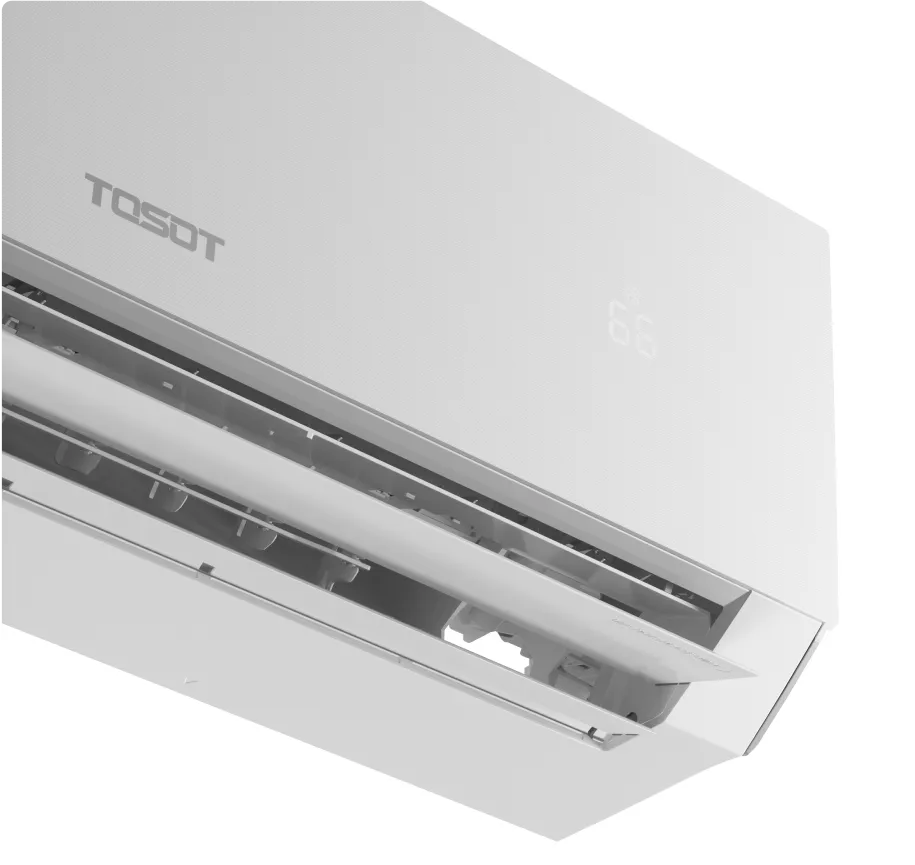

45° Angled Air Outlet

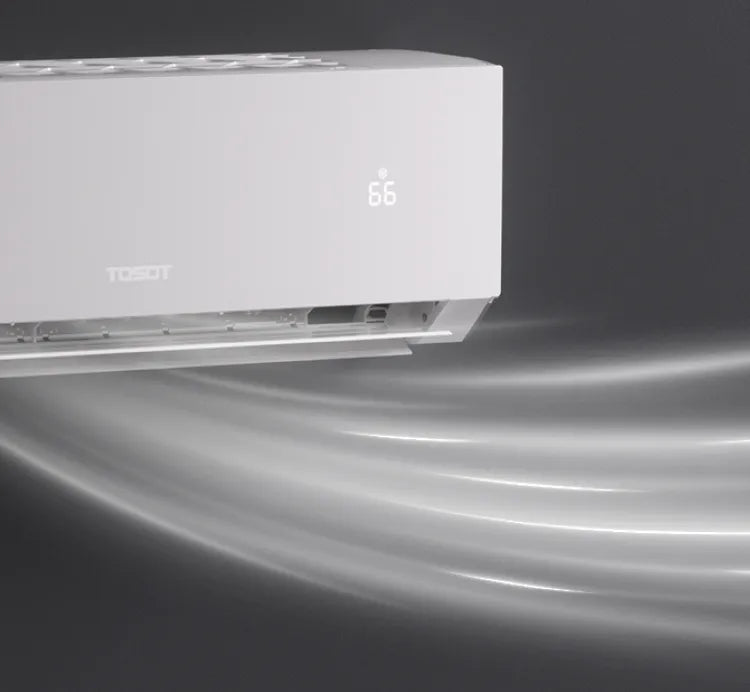

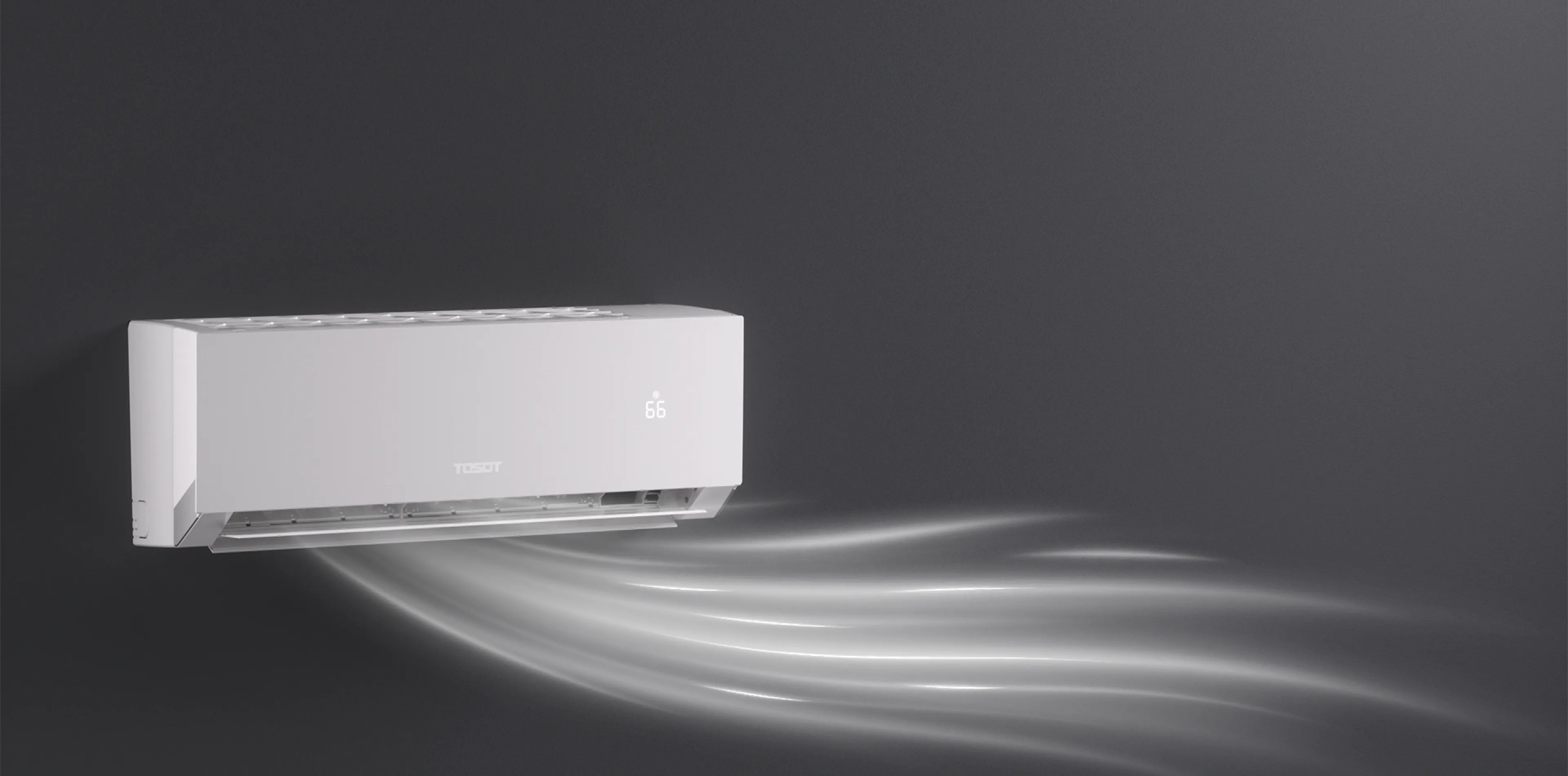

Less Buzz, More Breeze
Comfort That Keeps Up with Your Life

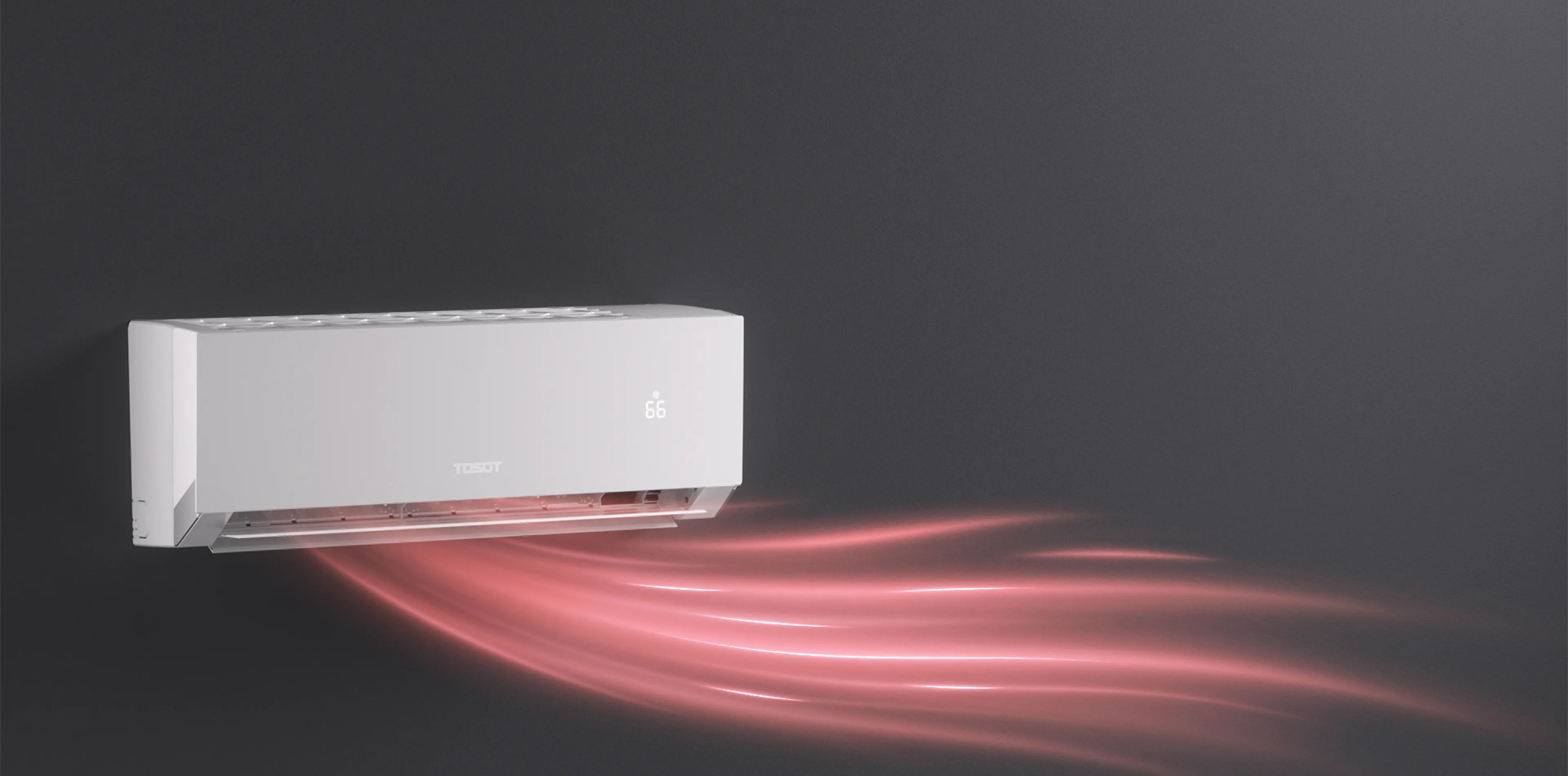

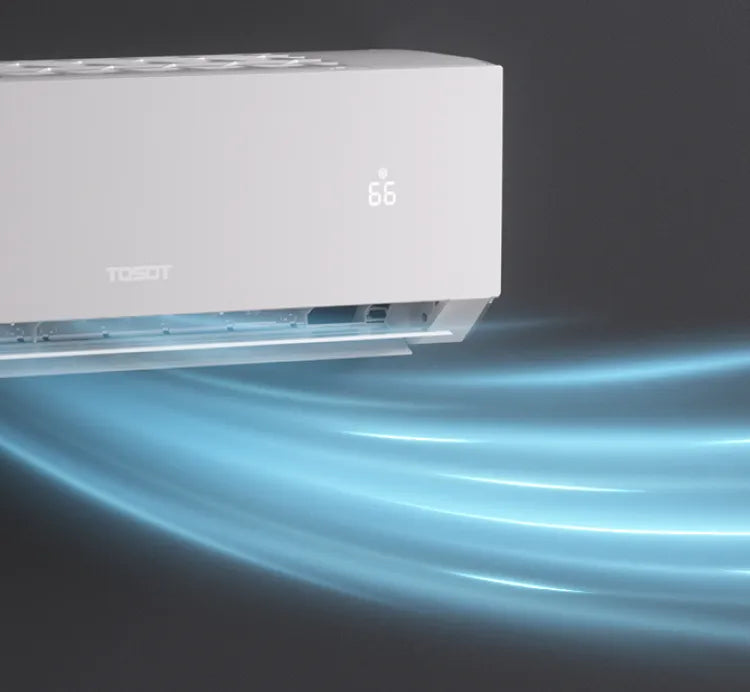

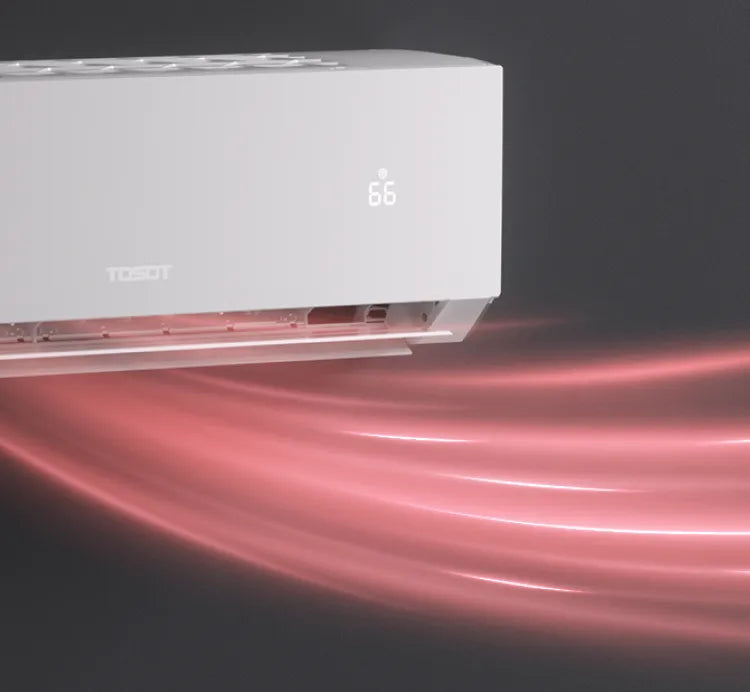

Whether you're dealing with a heatwave or an icy winter morning, this unit is built to keep your space just the way you like it.
Smart Humidity Control

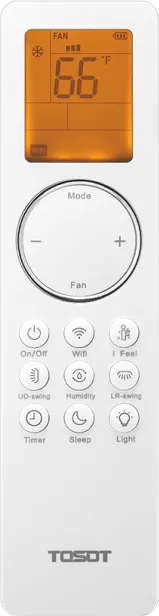

REMOTE CONTROL

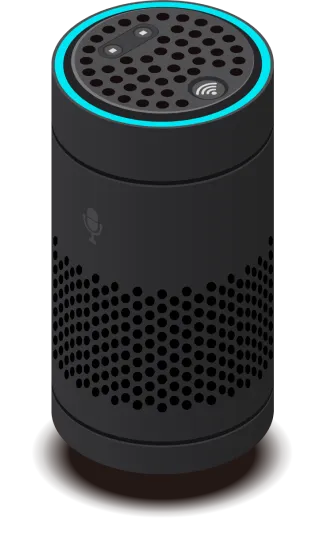

VOICE CONTROL

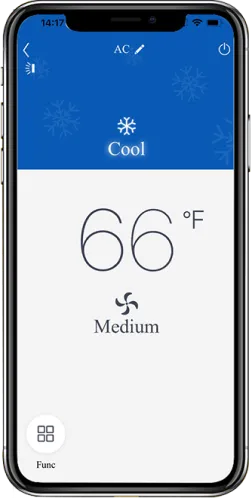

APP CONTROL

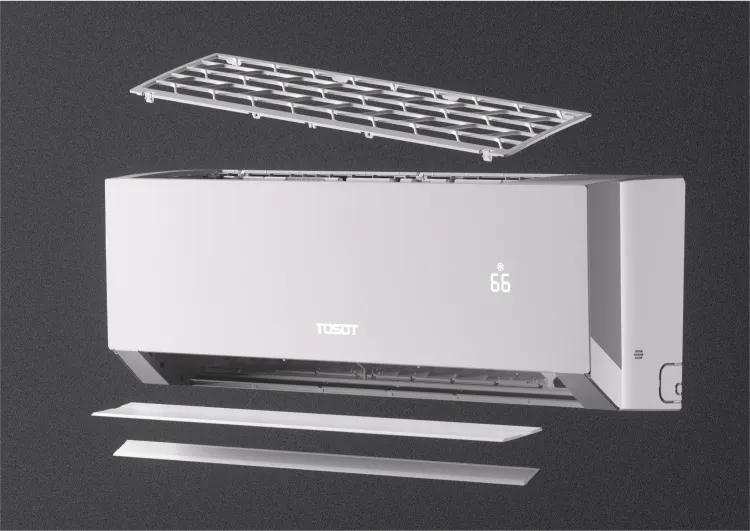

Ready For Installation

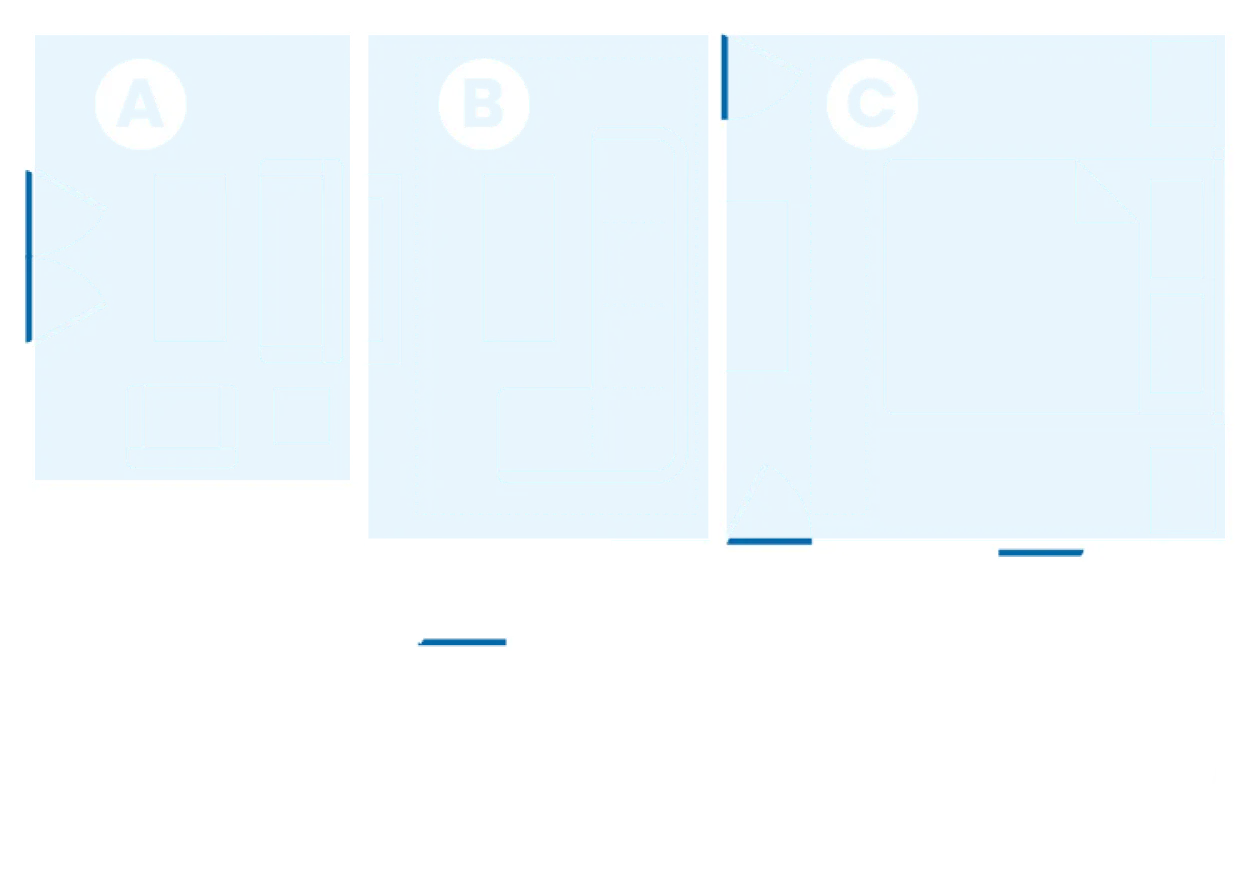

Sizing Chart
More Details
5 Year Standard Warranty
