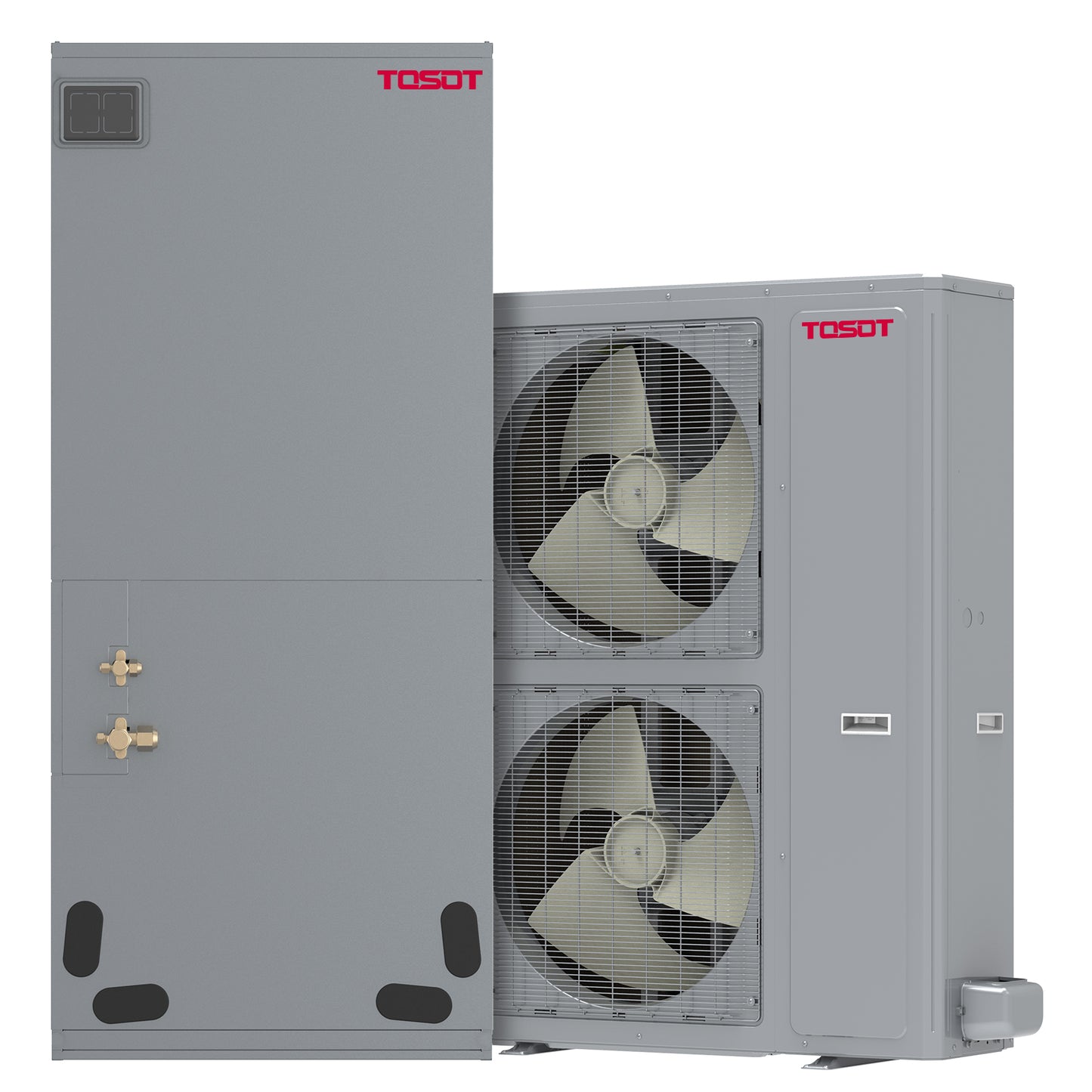

5 Ton / 60,000 BTU 17.0 SEER2 Central Heat Pump System

$4,657.00
$4,657.00 $5,499.99

TST-HP-A60-16

Key Features:

  • Energy Star certified: Rated at 16 SEER2 and 9 HSPF2
  • UltraCool™ & UltraHeat™ Technology ( -22℉ to 130℉)
  • Side discharge & Slim design
  • Multipositional air handler: Installed horizontally or vertically
  • Compatible with universal 24V thermostats (not included)
  • All installation accessories included
  • R410A refrigerant
  • 5-year warranty
Line Set
Get Quote

🛠️Now offering installation services in Texas and Washington State. To request service and pricing, please fill out the HVAC Installation Service Form

View full details
  • Features
  • Reviews

Description

The TOSOT Apex Unitary Ducted Central Heat Pump offers an ideal solution for comprehensive climate control throughout your home. This integrated heat pump system not only meets cooling and heating requirements cost-effectively but also provides a seamless upgrade for your Traditional Ducted Air Conditioning Unit without necessitating the replacement of existing ductwork. By enhancing indoor comfort year-round, this system promotes energy savings and reduces environmental impact. Moreover, replacing your old furnace with this unit makes you eligible for a rebate of up to $3,500


Energy Efficiency: With over 30 years of experience in the HVAC industry, the TOSOT Apex Unitary Ducted System utilizes a DC inverter compressor and motor. Combined with two-stage compression technology, it enables the unit's heating operation range to reach down to -22°F (-30°C)and cooling range up to 118.4°F(54°C). The system achieves the highest energy efficiency standard with a SEER rating of up to 17 SEER2 and 10 HSPF, well above the industry average level.


UltraCoolTM & UltraHeatTM Technologies: The system adopts a two-stage inverter compressor, which can be adjusted by supplementary air injection enthalpy to improve the system's mass flow rate and subcooling, resulting in less performance decline under extreme weather conditions. The unit can supply 100% heating capacity at -5℉(-20℃) for the 2-ton unit and reliable operation at -22℉(-30℃) for the entire series, effectively enhancing heating comfort.


Quiet but Strong: The high-efficiency brushless DC inverter motor produces less noise and is 30% more efficient than conventional asynchronous motors. Condenser noise levels are kept below 58dB, minimizing disruptions in the surrounding environment.


Flexible Installation: With its slim profile design, the outdoor unit can fit in various installation areas such as balconies and roofs. The side-charge design occupies half the area compared to conventional top-discharge designs. You can choose between flaring or brazing connection options.


Multiple Protections: The Gold Fins condenser is tested to withstand 1,500 hours of neutral salt spray. Featuring a 3-layer structural design, the system effectively resists sourness, salt, or water corrosion, ensuring a longer service life even in harsh conditions.


Wide Compatibility: The system integrates seamlessly with any third-party air handler and 24V thermostat


Warranty Coverage: 10-year warranty on parts and a 10-year warranty on the compressor

More Stages = More Comfort

Triple-Cylinder, Two-Stage Rotary Inverter Compressor
Integrates advanced technologies such as EVI, an asymmetric vortex line, and a central motor. Its "2+1" structure optimizes low-temperature heating by efficiently adjusting its volume ratio, making it highly effective in cold climates. Widely used in North America, it has received positive feedback for its reliability and successful replacement of furnaces and traditional ducted AC systems.
cooling capacity and heat capacity comparison

UltraCoolTM & UltraHeatTM Technologies

Cool up to 130°F and heat down to -22°F
Equipped with the two-stage inverter compressor, it brings less performance decline under extreme weather conditions.
TOSOT Ducted Heat pump is capable of providinge 100% heating capacity at -4°F and reliable operation at -22°F, compared to other brands that might malfunction under the temperature of -13°F. Provide 100% cooling performance at 115°F.
eligible for rebate

3x Efficiency Compared to Gas Furnaces

Certified by AHRI and Energy Star
The system achieves top-tier energy efficiency, with ratings of up to 17 SEER2 and 10 HSPF2, significantly surpassing industry averages.
17.0 Btu/h SEER2
10.0 Btu/h HSPF2
11.8 Btu/h COP
3,000 Sq. Ft Coverage
comparison between apex condenser and traditional condenser

Flexible Installation

Side Discharge & Slim Deisgn
The side-charge design occupies half the area compared to conventional top-discharge designs, such as gas furnaces. You can choose between flaring or brazing connection options.
The air handler can be installed horizontally or vertically, allowing for flexible installation in basements, attics, and both residential and commercial spaces.

Dual Heating Belts

Compressor Electric Heating Belt
Preheats the compressor to to ensure proper oil temperature for a smooth start-up in cold weather.
Chassis Electric Heating Belt
Prevents snow and ice buildup that could disrupt fan rotation, guaranteeing dependable operation during heating.
defrosting proecss

Intelligent Defrosting

TOSOT's intelligent defrosting technology accurately detects the frosting status of an outdoor unit using temperature sensors.
It then smartly adjusts the defrosting process according to the actual conditions, enhancing heating efficiency and ensuring room comfort.

24-Volt Interface

Compatible with most third-party 24V thermostats. The condenser can auto-adjust its capacity intelligently without communication.

Gold Fin Condenser

Featuring a 3-layer structural design, the system effectively resists corrosion from sourness, salt, or water, ensuring a longer service life even in harsh conditions.

Quiet but Strong

The brushless DC inverter motor produces less noise and is 30% more efficient than conventional asynchronous motors. Condenser noise levels are kept below 58 dB.

Specification

Download user manual Download tech sheet

Technical Data

Applicable Area 1,500-3,000 sq. ft
Power Supply (V-Ph-Hz) AC 203/230 V, 1 Ph, 60 Hz
SEER2 (Btu/h)/W 17.0
EER (Btu/h)/W 10.5
COP (Btu/h)/W 11.80
HSPF2 10.0
Cooling Range (Btu/h) 54,000
Heating Range (Btu/h) 54,000
Air Handler Dimension (WxDxH) (in.) 21.3 x 21.3 x 48.3
Air Handler Weight (Lbs) 203.0
Condenser Dimension (WxDxH) (in.) 39.37 x 14.57 x 53.74
Condenser Weights (Lbs) 308.7
Refrigerant Type R410A
Copper Pipe 3/8"+3/4", 16 ft
Warranty 5-Year

Package List

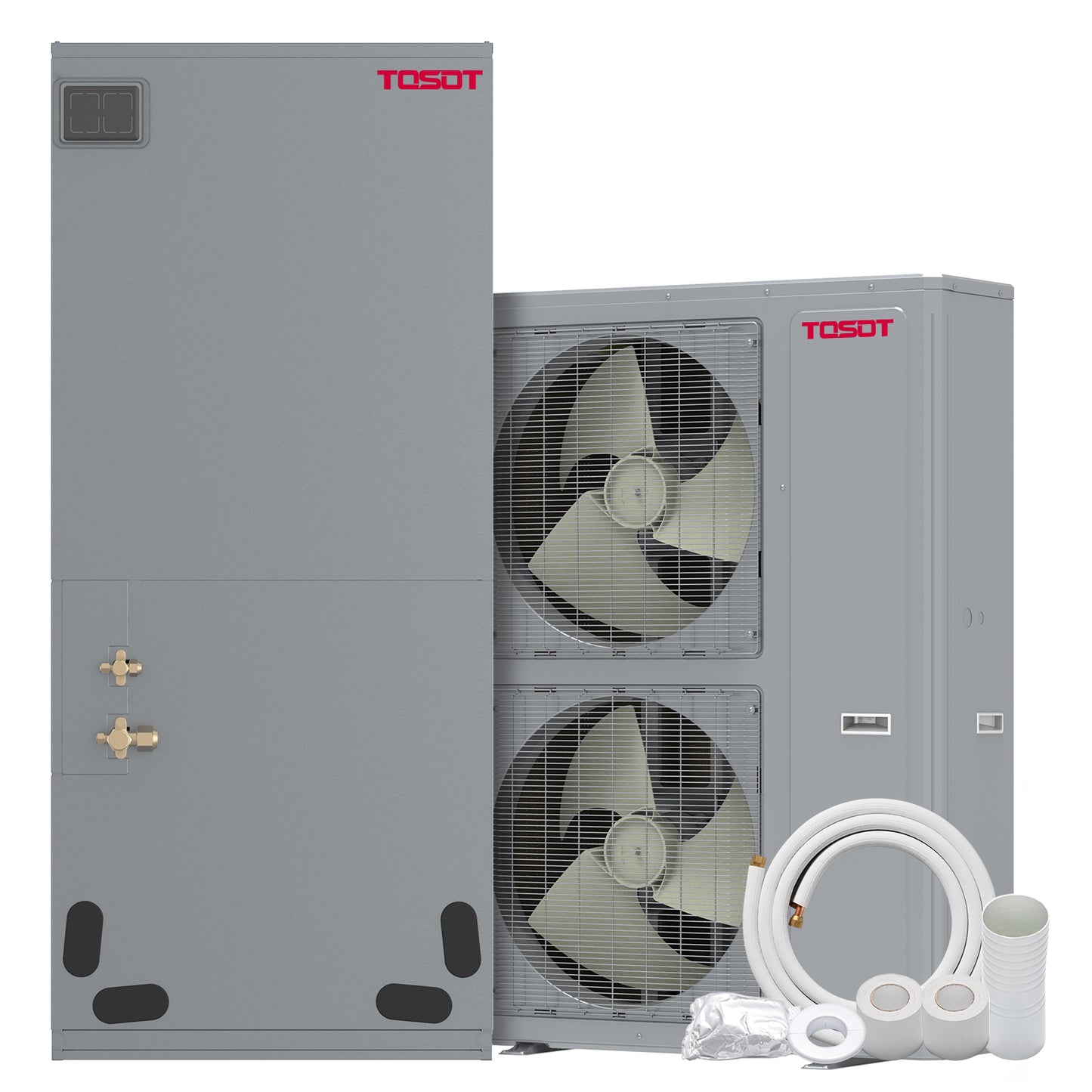

packing list: wall cap, sealing gum, wall sleeve, tapes, user manual, set of pipe, air handler, condenser
