Aoraki 24.5 SEER2 18,000 BTU Heat Pump Mini Split AC w/ERV System
available for orders over $1 ⓘ
SKU: TST-SU-A18K-WT-ERV
Key Features
- Exceptional 24-24.5 SEER Rating
- Energy Star Certified with tax rebate eligibility
- Compatible with ERV Systems
- Operates in Extreme Temperatures from -22°F to 122°F
Couldn't load pickup availability
TOSOT Aoraki Series Mini Split Air Conditioner
Product Description
The TOSOT Aoraki Series mini split air conditioner offers energy-efficient cooling and heating with a SEER2 rating up to 24.5, reducing electricity usage by about 35% compared to lower-rated units. Certified by ENERGY STAR, it also qualifies for potential tax credits, providing long-term savings.
Designed to perform in extreme temperatures ranging from -22°F to 122°F, this air conditioner delivers rapid cooling and heating with 12,000 BTU to 24,000 BTU capacities. It also features smart humidity control for intelligent moisture reduction and clothes drying indoors. Easy to maintain, the system includes a dust-proof air outlet, removable air guide plates, and auto-clean technology for a fresh, clean environment.

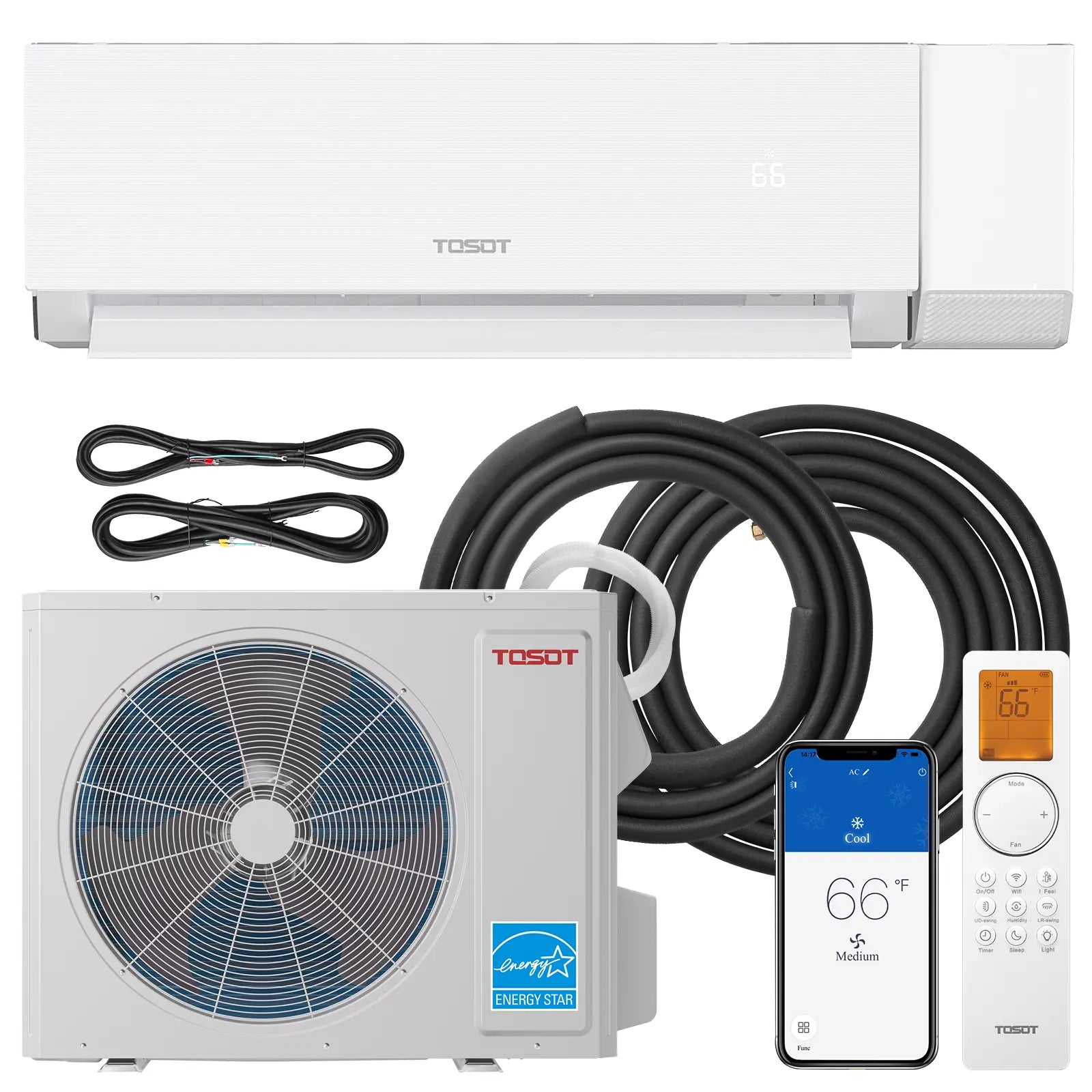

You can choose to purchase the Aoraki-specific energy recovery ventilation (ERV) accessory to enhance indoor air quality by exchanging stale indoor air with fresh outdoor air without the need to open windows.
Documentation
Technical Specifications
- Energy Efficiency: SEER2 up to 24.5 rating, 35% cost reduction vs SEER2 16 units, Energy Star certified
- Temperature Range: Operates from -22°F to 122°F with 12,000-24,000 BTU capacity
- Humidity Control: 30-80% adjustable settings with smart dehumidification
- ERV Compatibility: ERV system sold separately: Purchase Link
- Maintenance: Dust-proof design with auto-clean technology
- Noise Level: 40dB quiet operation in night mode
Package Contents
Indoor Unit Package
- • Indoor Unit & Mounting Plate
- • Insulation Sleeve
- • 5x Drywall Anchors
- • Remote Control Kit
- • 20ft Signal Cable
- • User Documentation
Outdoor Unit Package
- • Outdoor Unit
- • Wall Cuff & Drain Joint
- • 16ft Refrigerant Pipes
- • Electrical Components
- • Drainage System
Important: Packages may ship separately - Schedule installation after receiving all components
PERFORMANCE
- Cooling Capacity (Btu/h):18,000
- Heating Capacity (Btu/h): 18,000
- EER(Btu/h)/w: 13.65
- COP(w/w): 3.91
- SEER2: 24.5
- HSPF2: 9.0
- Airflow (H/M/L): 850/700/600 m3/h
- Dehumidification (Pts/hr): 2.96
- Est. Cooling Area (Sq. Ft.): 750
- Voltage: 208/230~60Hz, 1Ph
- Rated Input(W):2350
- Rated Current(A): 11.6
- Min. Current (MCA) (A) :16
- Temperature Range (°F): 61-86
- Noise Level (H/M/L): 48/39/29 decibels
DIMENSIONS & WEIGHTS
Indoor Unit
- Approximate Shipping Weight (lbs): 35.3
- Approximate Net Weight (lbs): 29.8
- Shipping Dimensions (W×H×D) (inches): 41.57 x 15.17 x 11.74
- Unit Dimensions (W×H×D) (inches): 39.12 x 12.25 x 8.75
Outdoor Unit
- Approximate Shipping Weight (lbs): 104.7
- Approximate Net Weight (lbs): 94.8
- Shipping Dimensions (W×H×D) (inches): 40.66 x 29.03 x 17.97
- Unit Dimensions (W×H×D) (inches): 37.34 x 26.00 x 15.83
Line Set Length
- Copper Line Set(ft): 16
- Signal Cable(ft): 19
- Power Cord(ft):19
- Reviews
- Questions
Great mini split
Shipping was very fast, replaced 12 yr old Gree 24k BTU with this. Very quiet and cools much better than my old unit. Took my tech 2 to 2.5 hours to remove old and install new. So far I am thrilled with this purchase.
Great product
I just installed the tosot aroki 18k mini split. The installation was pretty straightforward. I only had a couple of questions that I needed technical support with. And I must say the technical support through tosot direct got back to me pretty quickly. Once I figured out the remote control this unit is working very well. I’m very impressed with how quiet it is and how well it heats and cools. Only time will tell how well it’ll hold up in the long run.
User Manual: Download
What should I check before buying ERV system?
Confirm that your installation site allows for a hole to be drilled through a wall to route the fresh air pipe outdoors. The pipe is 35 inches (90 cm) long and extension pipes are not available. Ensure your wall’s thickness and layout allow the pipe to reach the exterior. If you're unsure, feel free to contact us with photos of your intended installation area for assessment.
Can the ERV system work independently?
The ERV system must first be wired to a compatible indoor unit. Once properly connected, it can operate independently to facilitate indoor-outdoor air exchange even when the air conditioner is turned off.
Can the ERV system work with my existing split AC?
No. This ERV system is specifically designed to be used with TOSOT Aoraki mini-split systems and is not compatible with other brands or models.
Does the ERV system need to be installed right next to the indoor unit?
Not necessarily. However, it must be connected to the indoor unit using a cable no longer than 3.9 ft (1.2 m). Please ensure the ERV is installed within this distance.
Can the ERV system be mounted on any wall?
We recommend installing the ERV on the indoor side of an exterior wall, as the fresh air pipe needs to pass through to the outside. The included pipe is 35 inches (90 cm) long, which may not be sufficient for interior walls or walls with extra thickness.
BREATHE FRESHER, SAVE MORE
Industrial Leading Efficiency
Save Up to 36% on Your Energy Bills
Aoraki isn’t just efficient—it’s smart with your money. Compared to a 16 SEER system, it can lower your energy bills by up to 36%. Thanks to its inverter compressor, it avoids the energy waste of constant on-off cycling.
Cooling Savings
16 SEER VS. 24.5 SEER
Annual Energy Cost Only $173
*Based on 13.19 cents/KWh and 1320 yearly cooling hours average for United States. This stats is only for references.
Compatible w/ERV System
Sync or Independently
HEPA Filter
Flexible Installation
45° Angled Air Outlet
Less Buzz, More Breeze
Comfort That Keeps Up with Your Life
Whether you're dealing with a heatwave or an icy winter morning, this unit is built to keep your space just the way you like it.
Smart Humidity Control
REMOTE CONTROL
VOICE CONTROL
APP CONTROL
Ready For DIY
Sizing Chart
More Detials
5 Year Standard Warranty
