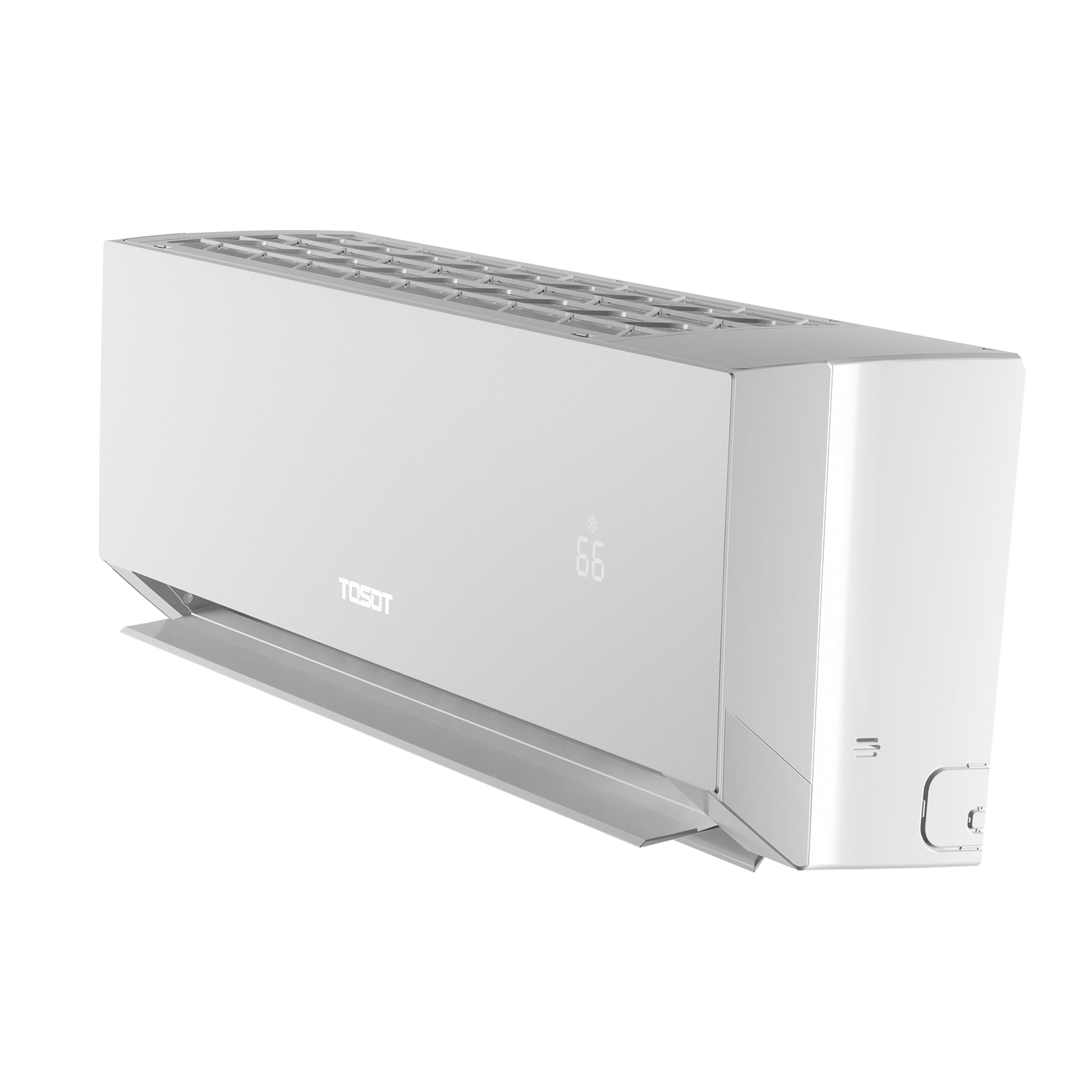

TOSOT Aoraki Series Mini Split Air Conditioner
Product Description
The TOSOT Aoraki Series mini split air conditioner offers energy-efficient cooling and heating with a SEER2 rating up to 24.5, reducing electricity usage by about 35% compared to lower-rated units. Certified by ENERGY STAR, it also qualifies for potential tax credits, providing long-term savings.
Designed to perform in extreme temperatures ranging from -22°F to 122°F, this air conditioner delivers rapid cooling and heating with 12,000 BTU to 24,000 BTU capacities. It also features smart humidity control for intelligent moisture reduction and clothes drying indoors. Easy to maintain, the system includes a dust-proof air outlet, removable air guide plates, and auto-clean technology for a fresh, clean environment.
You can choose to purchase the Aoraki-specific energy recovery ventilation (ERV) accessory to enhance indoor air quality by exchanging stale indoor air with fresh outdoor air without the need to open windows.
Key Features
- Energy Efficiency: TOSOT Aoraki series mini split air conditioner boasts a high SEER2 rating of up to 24.5; reduces electricity costs by up to 35% compared to units with a SEER2 rating of 16; qualifies for tax credits due to its Energy Star certification.
- Efficient Cooling and Heating: Available in 12,000 to 24,000 BTU cooling and heating capacities; works effectively in temperatures from -22°F to 122°F; features fast cooling and Turbo mode for rapid temperature adjustment.
- Smart Humidity Control: Offers adjustable humidity settings between 30-80%; smart dehumidification in cooling mode adjusts humidity based on human body comfort; continuous dehumidification in dry mode helps dry clothes in any weather.
- ERV System Compatibility: Can be paired with the TOSOT energy recovery ventilation system; facilitates fresh air circulation indoors without opening windows or doors; installation requires a 4.33-inch hole in the wall; please contact us for more details.

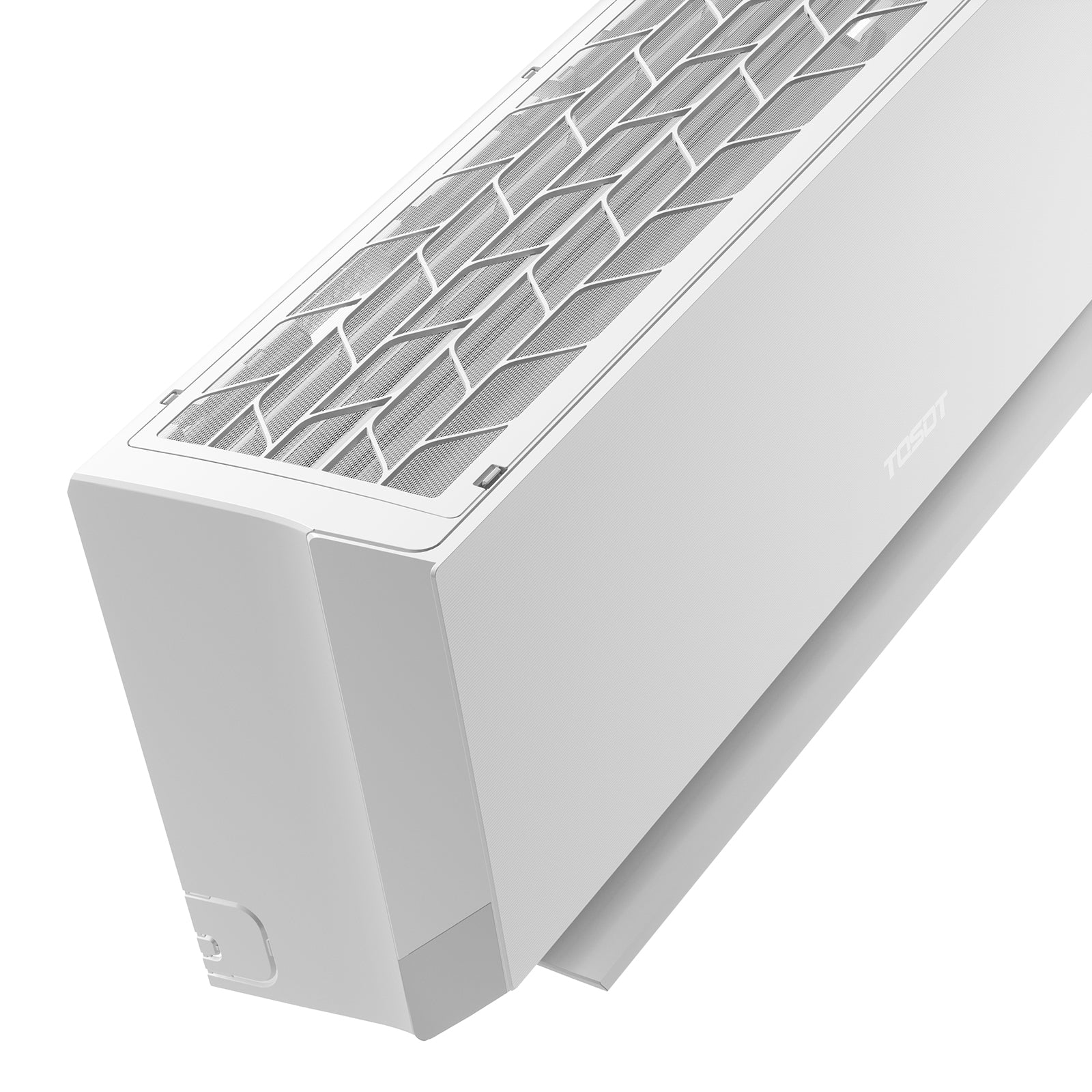

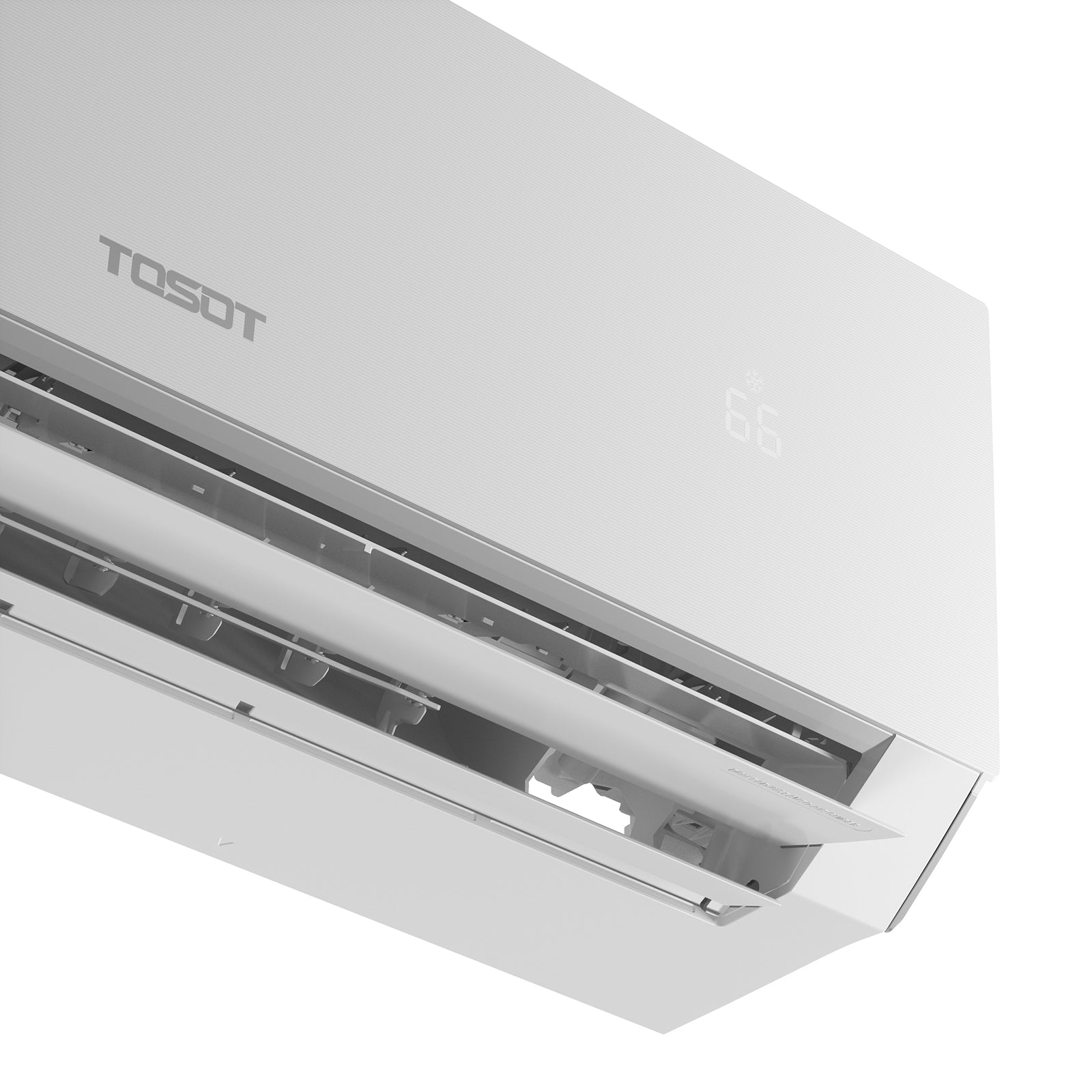

- Low-Maintenance Design: Fully-closed outlet prevents dust buildup; adjustable louvers and top filter are easy to detach and clean; evaporator self-cleaning technology removes dirt and eliminates odors for fresh indoor air.
- User-Friendly Operation: Light sensor automatically adjusts display brightness based on surrounding light conditions; night mode reduces outdoor unit noise to a quiet 40dB, ensuring a restful environment for sleep and a peaceful neighborhood.
Manuals & Documents

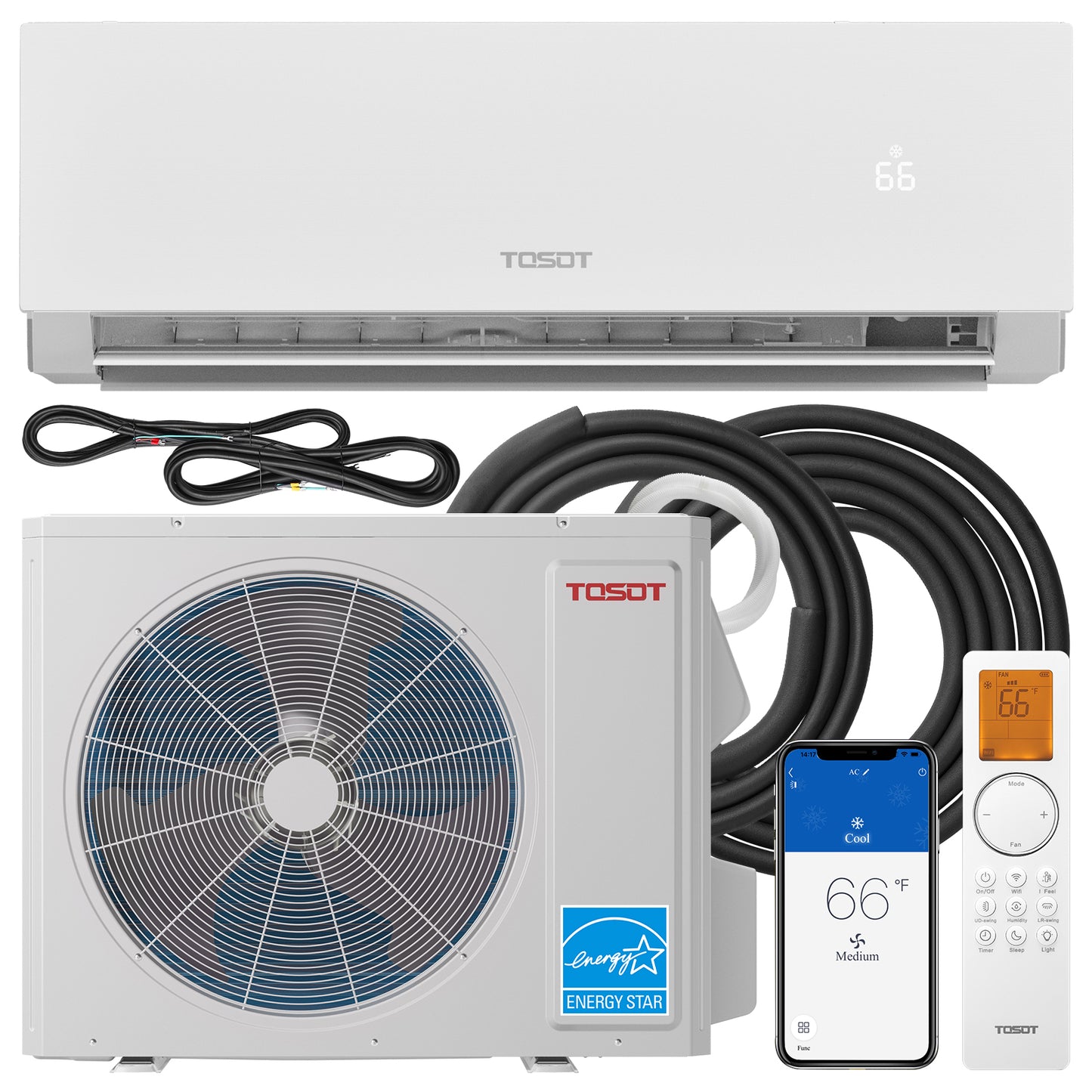

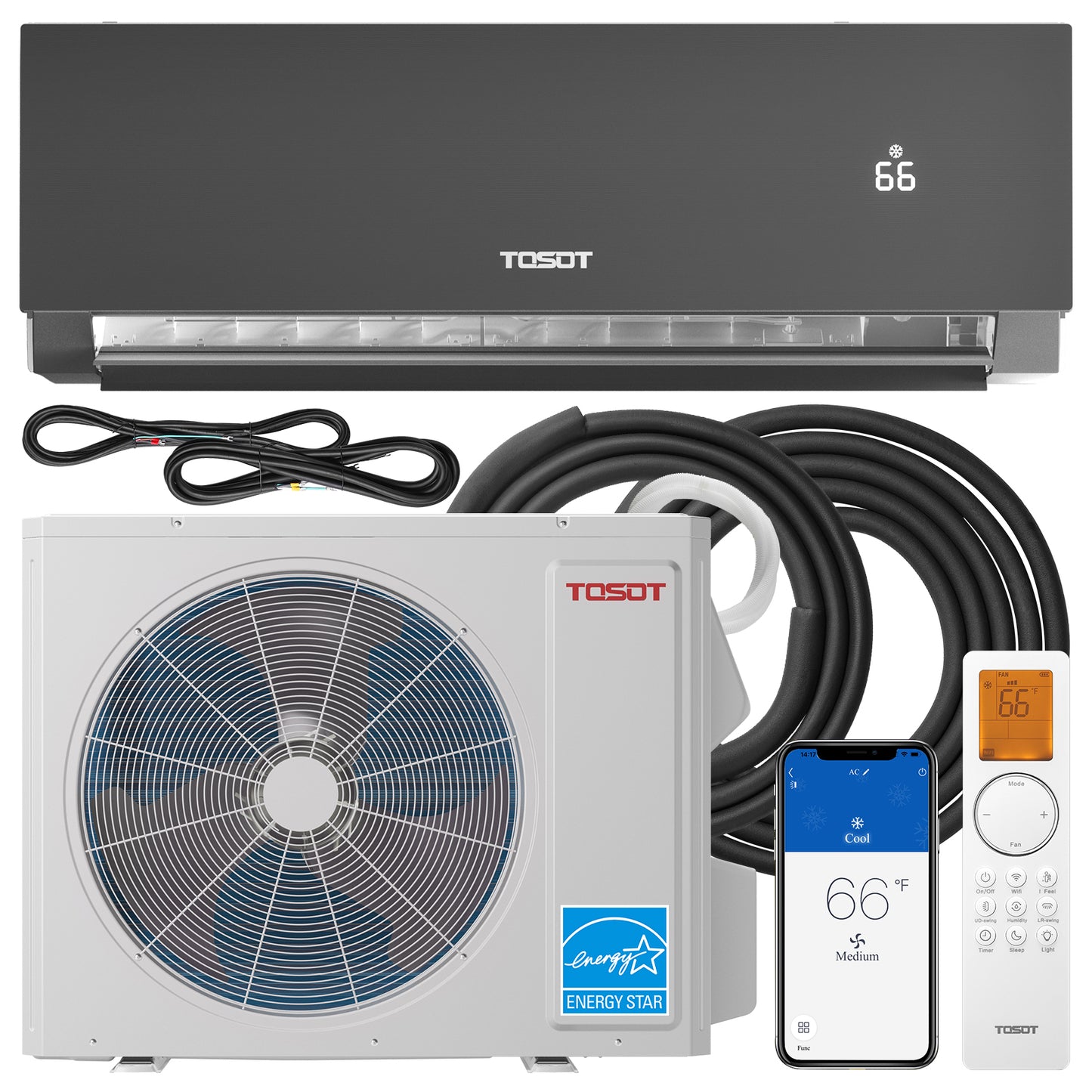

Package List
Package 1
- 1 x Indoor Unit & Mounting Plate
- 1 x Insulation Sleeve
- 5 x Drywall Anchor
- 5 x Mounting Plate Fixing Screw
- 2 x Flare Nut
- 1 x 20 ft Signal Cable
- 2 x Remote Holder Fixing Screw
- 1 x Remote Control
- 1 x Remote Control Holder
- 2 x AAA Battery
- 1 x User Manual
- 1 x App Control Quick Guide
Package 2
- 1 x Outdoor Unit
- 1 x Wall Cuff
- 1 x Drain Joint
- 1 Set x 16ft Refrigerant Pipe
- 1 x 16 ft Electrical Cable
- 1 x Sealing Gum
- 1 x 6 ft Drain Hose
- 2 x Tape
Package 3
- 1 x Fresh Air Pipe (Includes the insulation cotton ø 55mm)
- 1 x Rainproof Joint
- 1 x Mounting Plate
- 1 x Wire Cross Plate
- 2 x Joint Subassembly 2 (Air In)
- 1 x Expansion Pipe Subassembly
- 1 x Wire of Two-Way Ventilation System (A)
- 1 x Wire of Two-Way Ventilation System (B)
- 1 x Filter
- 1 x Screw Accessory
- 1 x Connection Line
Note: Your order may be shipped in multiple packages and arrive at different times; please arrange installation after receiving all the packages.
PERFORMANCE
- Cooling Capacity (Btu/h):24,000
- Heating Capacity (Btu/h): 24,000
- EER(w/w): 3.85
- COP(w/w): 3.15
- SEER2: 24
- HSPF2: 9.0
- Airflow (H/M/L): 950/670/430 m3/h
- Dehumidification (Pts/hr): 5.07
- Est. Cooling Area (Sq. Ft.): 750
- Voltage: 187/253~60Hz, 1Ph
- Rated Input(W):3850
- Rated Current(A): 17.2
- Min. Current (MCA) (A) :23
- Temperature Range (°F): 61-86
- Noise Level (H/M/L): 48/39/30 decibels

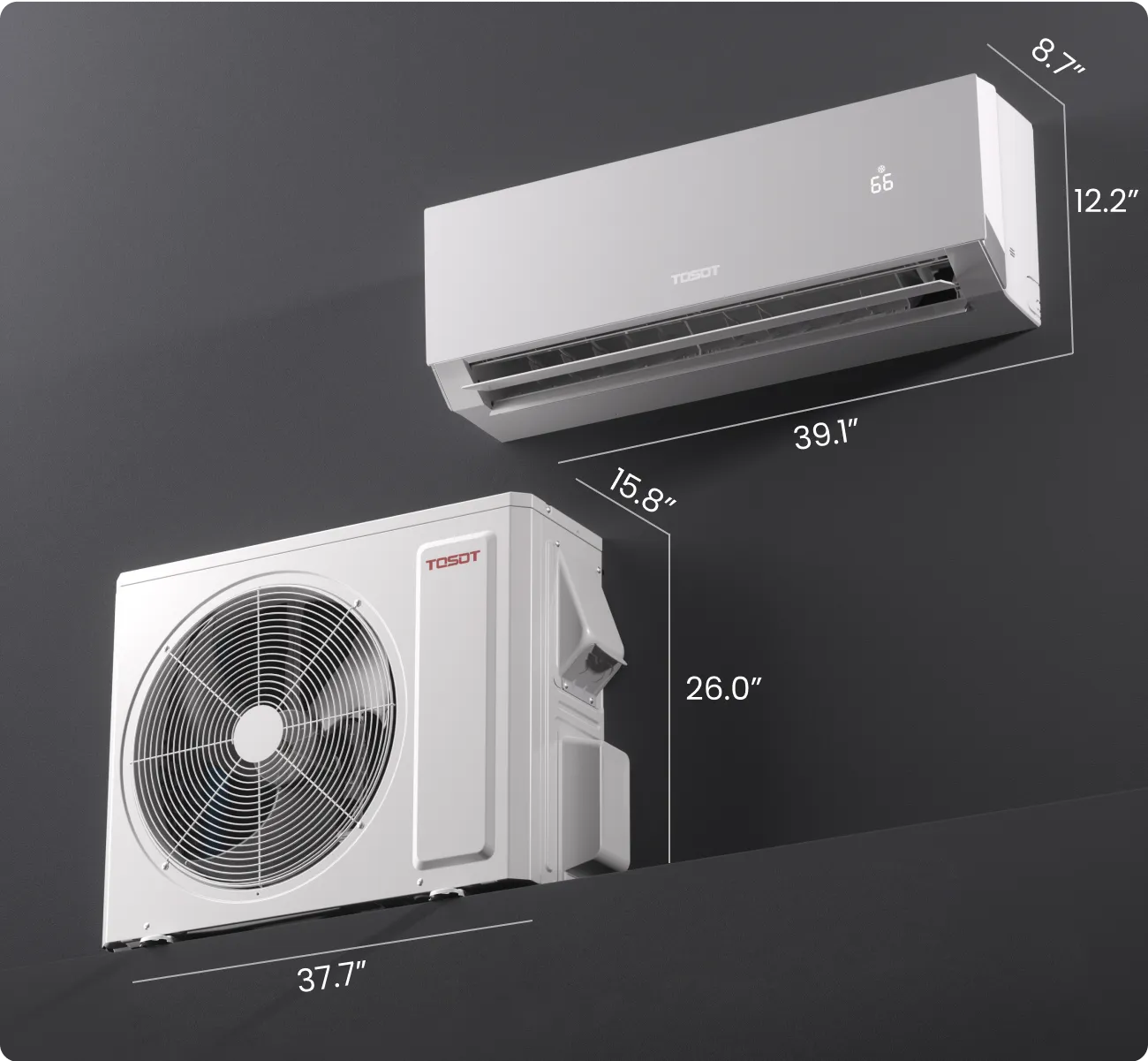

DIMENSIONS & WEIGHTS
Indoor Unit
- Approximate Shipping Weight (lbs): 35.3
- Approximate Net Weight (lbs): 29.8
- Shipping Dimensions (W×H×D) (inches): 41.57 x 15.17 x 11.74
- Unit Dimensions (W×H×D) (inches): 39.12 x 12.25 x 8.75
Outdoor Unit
- Approximate Shipping Weight (lbs): 114.7
- Approximate Net Weight (lbs): 103.9
- Shipping Dimensions (W×H×D) (inches): 42.55 x 31.91 x 19.03
- Unit Dimensions (W×H×D) (inches): 39.4 x 29.39 x 16.82
Line Set Length
- Copper Line Set(ft): 16
- Signal Cable(ft): 19
- Power Cord(ft):19
User Manual: Download
BREATHE FRESHER, SAVE MORE
Industrial Leading Efficiency
Save Up to 36% on Your Energy Bills
Aoraki isn’t just efficient—it’s smart with your money. Compared to a 16 SEER system, it can lower your energy bills by up to 36%. Thanks to its inverter compressor, it avoids the energy waste of constant on-off cycling.
Cooling Savings
10 SEER VS. 21 SEER
Annual Energy Cost Only $75
*Based on 13.19 cents/KWh and 1320 yearly cooling hours average for United States. This stats is only for references.
Compatible w/ERV System
Sync or Independently
HEPA Filter
Flexible Installation
45° Angled air outlet
Less Buzz, More Breeze
Comfort That Keeps Up with Your Life
The noise level of the indoor unit is only 24 dB, bringing you back to complete silence and keeping the noise of the compressor entirely out of your room. Your comfort will no longer be interrupted by a loud compressor.
Smart Humidity Control
REMOTE CONTROL
VOICE CONTROL
APP CONTROL
Ready For DIY
Sizing Chart
Maximum Comfort, MInimum Cost
5 Year Standard Warranty
