PERFORMANCE
- Min/Max. Voltage: 103.5/126.5
- EER(Btu/h)/w: 8.5
- Cooling Capacity(Btu/h): 15000
- Heating Capacity(Btu/h): 12000
- Cooling Power Input(W): 1270
- Heating Power Input(W): 1140
- Est. Cooling Area (Sq. Ft.): 650
- Rated Current(A): 12.5
- Required Circuit Breaker(A): 15-20
- Rated Input(W): 1550
- Temperature Range (°F): 61-86
- Noise Levell (H/M/L): 56/52/43 decibels
- Air Flow (CFM) : 282/253/182
DIMENSIONS & WEIGHTS
Indoor Unit
- Approximate Shipping Weight (lbs): 17.8
- Approximate Net Weight (lbs): 12.1
- Shipping Dimensions (W×H×D) (inches): 29.05×23.22×6.02
- Unit Dimensions (W×H×D) (inches): 26.25×19.56×3.77
Outdoor Unit
- Approximate Shipping Weight (lbs): 116.9
- Approximate Net Weight (lbs): 100.3
- Shipping Dimensions (W×H×D) (inches): 45.23×30.94×14.76
- Unit Dimensions (W×H×D) (inches): 42.40×28.34×12.16
- Reviews
- Questions
Very happy
Remodeled our fifth wheel and decided to update the AC. We couldn't be happier with this unit even on turbo it's half as loud as our old unit. I highly recommend this unit to anyone looking for a RV AC. It's quite cold. Warm on heat and the dehumidifier option has proved to be very useful during 5days of rain. I can't say enough about this unit will be getting another unit for the front bedroom next spring
Absolute Lifesaver for My Winnebago Revel sprinter

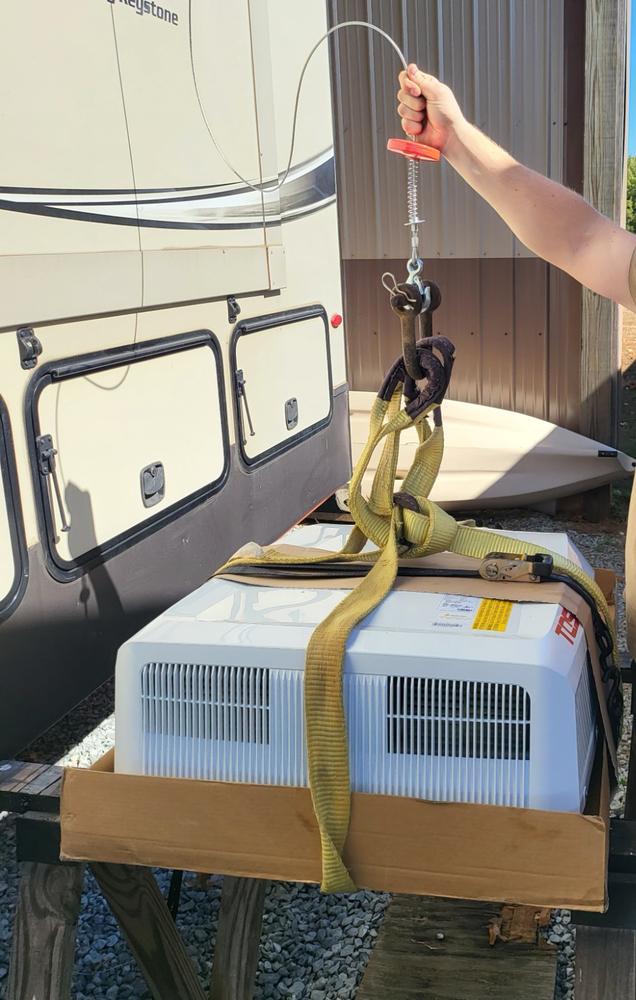

Finally had a chance to install this. at first I was thinking I would need to take it in somewhere to have it installed but turns out I was able to get it up there and installed with some help from a friend. We spend a ton of time traveling and living in our RV for long stretches of time, so having a reliable and efficient AC is crucial. The unit has really changed how we sleep with how quiet it is. I��m not exactly a DIY expert, but the installation was surprisingly straightforward. The unit came with clear instructions and all the necessary hardware for whichever roof thickness. I managed to get it up and running in about two hours. The instructions were super clear and made the whole process a easy enough. Performance: This AC is a brute. Even on the hottest days, it does cools down our RV quickly. The 15k btu I thought would be too much but is perfect, and there are no more hot spots like we had with our old unit. The adjustable vents are great for directing the airflow exactly where we need it, or you can set it on a sweep mode which is pretty cool. I kinda find it calming really One of my biggest pet peeves with rthe ususal RV AC units like the old coleman we had is the noise, but this one is impressively quiet. I used my phone at waist level about an arms length away from control panel to get 48DB on low. Whether we��re hanging out during the day or trying to sleep at night, it operates at a low enough noise level thatthat we can actually talk or THINK. It��s such a relief to have a quiet, peaceful environment, especially at night. This AC is also energy-efficient, which is a big deal for us. We noticed a drop in our energy consumption compared to our old unit, which means we can save some juice..we run on batteries so it matters Not that it's a huge deal or anything.. but the unit looks sleek and modern, fitting nicely with our RV��s interior/exterior. It feels sturdy and well-built, giving me confidence that it will last a long time. The remote control is a nice touch, making it easy to adjust the settings from the front without having to get up and mess with it. Overall, It��s made a huge difference in our comfort while on the road. fantastic investment. I highly recommend it now after putting it through some 100+ degree tests. It��s worth every penny and has made many aspects of teh RV so much more enjoyable.
Best on the market
I absolutely am thrilled to find a company that cares enough to have a metal pan which is integral for the lifespan of these units and a reversing valve for Texas residents can cut costs on LP dramatically in the winter. After 7 years as an RV tech this is definitely the quietest AC I have ever put in. Shipping was a little rough however the extra styrofoam, metal pan and reinforced plastic on the AC shroud definitely saved this unit from being returned from poor handling in shipping.
Really Great RV Air Conditioner
Very well designed and well made. Extremely quiet. I really appreciated the installation pdf on the website. I had questions before I purchased and received answers each time within 24 hours. Cools and heats! Very straight forward installation. I replaced a ducted unit, so I taped off the ducts. I had to purchase longer bolts as my roof is 4.5". Great value for your money.
User Manual: click here
Installation Guide: click here
Tailored Comfort for All Seasons


For Medium to Large Class RVs*


Empowering RVs: Efficient AC Control
Standby power
Rated power
Daily electricity consumption

Flexible Power Solutions

Convenient Installation
