Built-in Fan
Helps to cool the motor during operation, preventing overheating and ensuring consistent performance over extended use.
Portable Design
Designed for easy portability and an ergonomic handle for carrying the machine during transport or when moving between job sites.
Oil Level Lines
Help monitor the oil level to ensure normal pump performance and prevent damage.
Technical Specifications
| Model | VP30 |

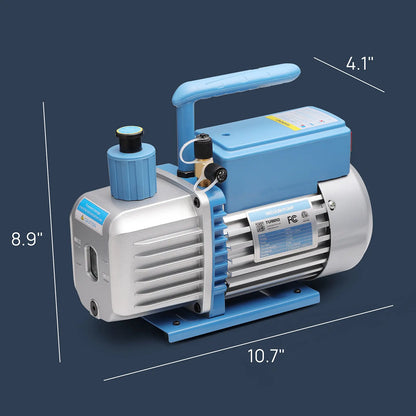

| Dimension | 4.1" (W) x 10.7" (D) x 8.9" (H) |
| Pump Weight | 11.7 lb |
| Voltage | AC 120 V / 60 Hz |
| Free Air Displacement | 4 CFM |
| Stages | 1 |

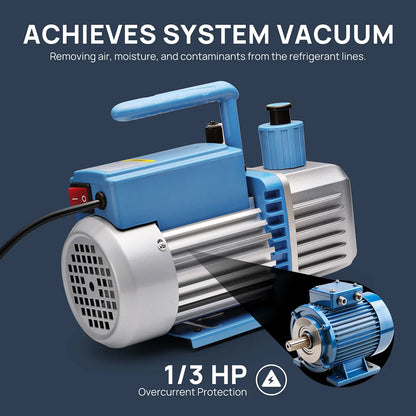

| Motor | 1/3 HP |
| Power Cord | 4.6 ft |
| Oil Capacity | 11.2 oz (330 ml) |
| Intake Port | 1/4” SAE, 1/2” ACME |
| Applicable Refrigerant | R134a, R22, R410a, R32, and R1234yf |
| Work Ambient Temperature | 41-104 ℉ (5-40 ℃) |

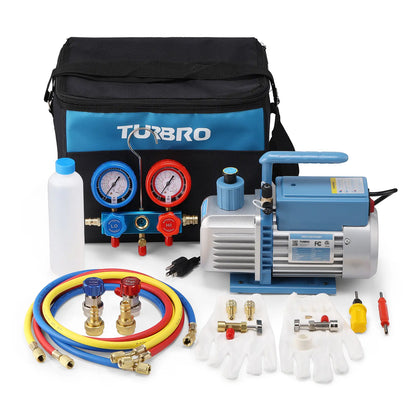

Package Includes
- 1 x Vacuum Pump

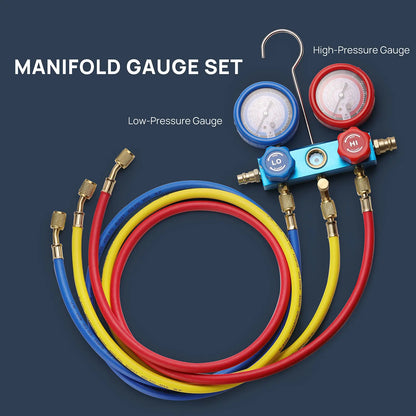

- 1 x Manifold Gauge
- 3 x Hose
- 1 x 11.2 oz Vacuum Pump Oil
- 1 x Pack of Tool

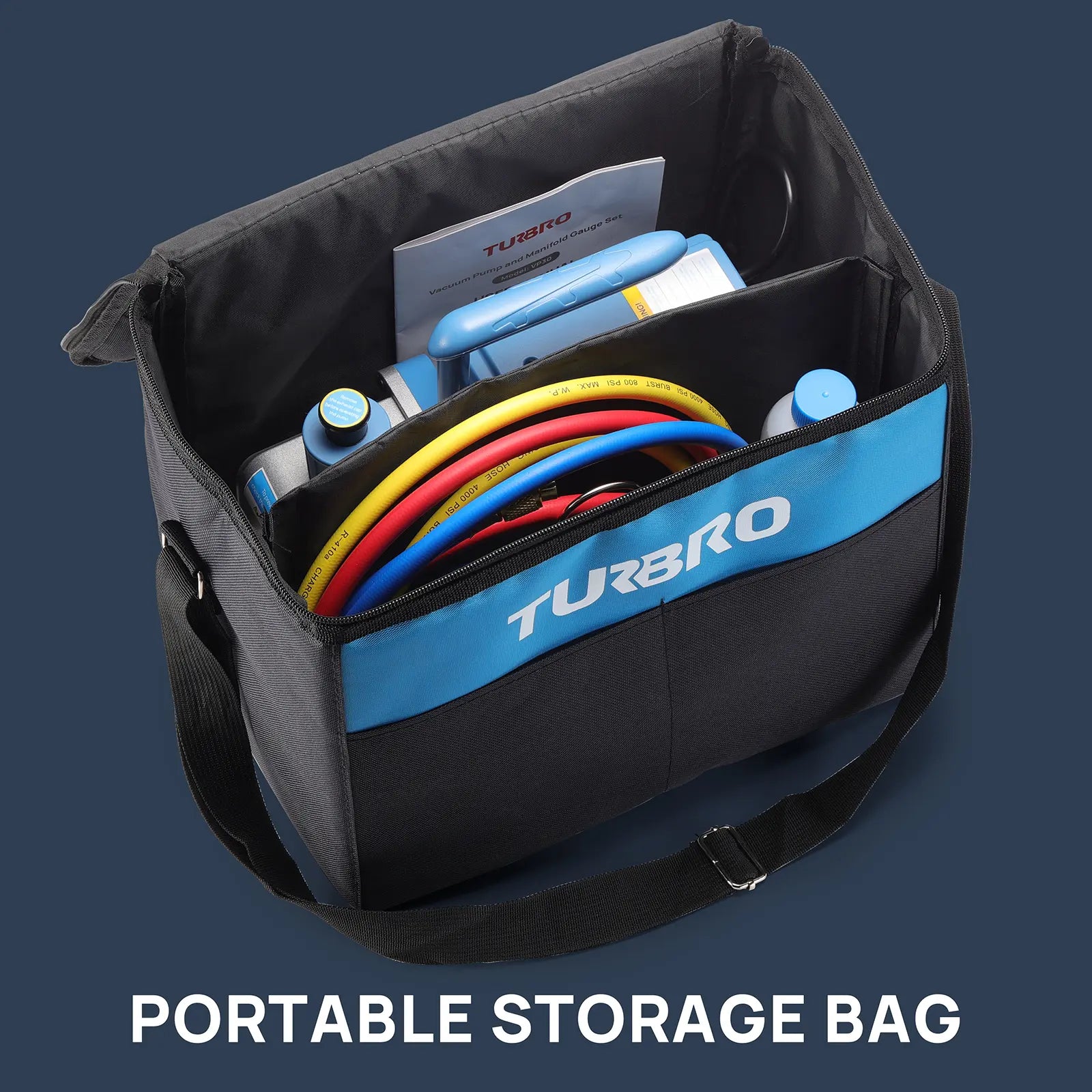

- 1 x Storage Bag
- 2 x 1/4" SAE to 5/16" SAE Adapters
- 2 x R134a Quick Connectors
- 1 x Set of R1234YF Adapters
- 1 x R134a Can Tap
- 1 x R1234YF Can Tap
