Features
- Auto Cooling mode
- Dehumidify mode
- Fan mode
- Sleep Mode
- Timer Mode
- Vertical Swing Mode
- Power Outage Restart

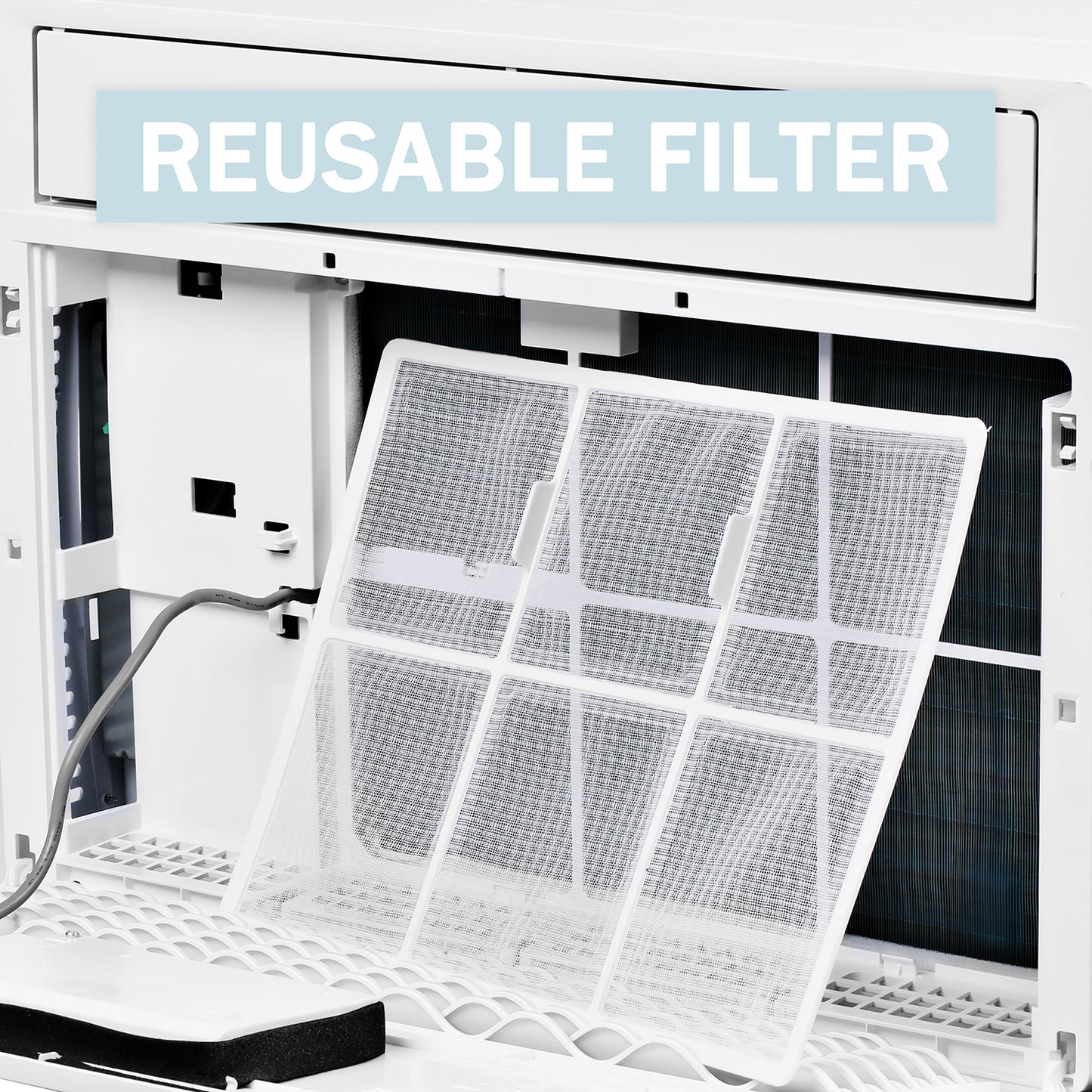

- Clean Filter Alarm
Technical Specifications
- Rated Voltage: 115V
- Rated Frequency: 60Hz
- Cooling Capacity: 10200 BTU/hour
- Cooling Power Input: 840W
- Rated Input:1120W
- Rated Current: 10.3A
- Energy Efficiency Ratio (EER): 12.1 (BTU/W)/hour
- Air Flow Volume (H/M/L): 291/268/244 CFM
- Dehumidifying Volume: 2.6 Pints/hour
- Moisture Protection: IPX4
- Refrigerant Type: R410A
- Sound Power Level (H/M/L): 69/67/65 decibels
- Fan Motor Speed (H/M/L): 1550/1470/1380 RPM
- User Manual: click here

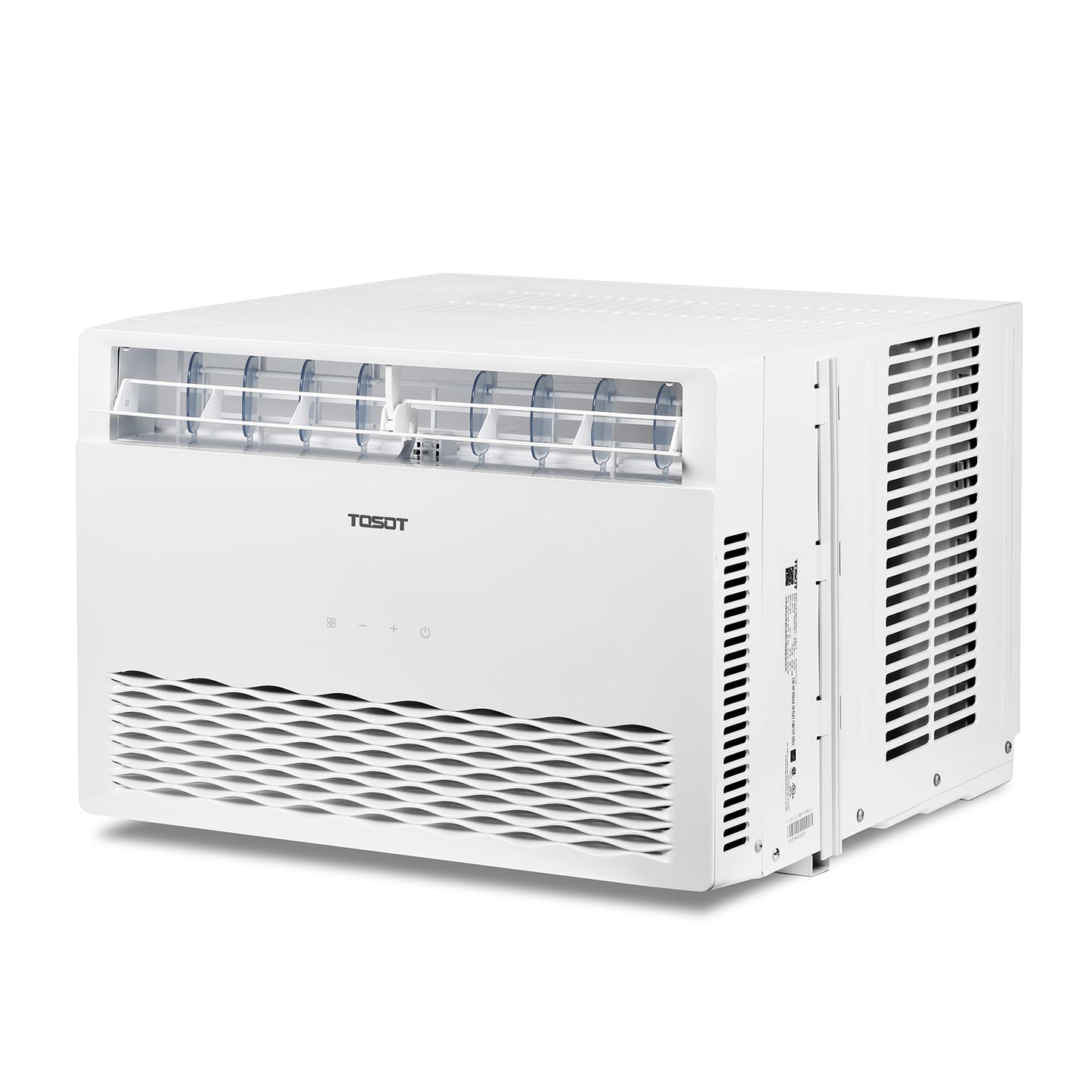

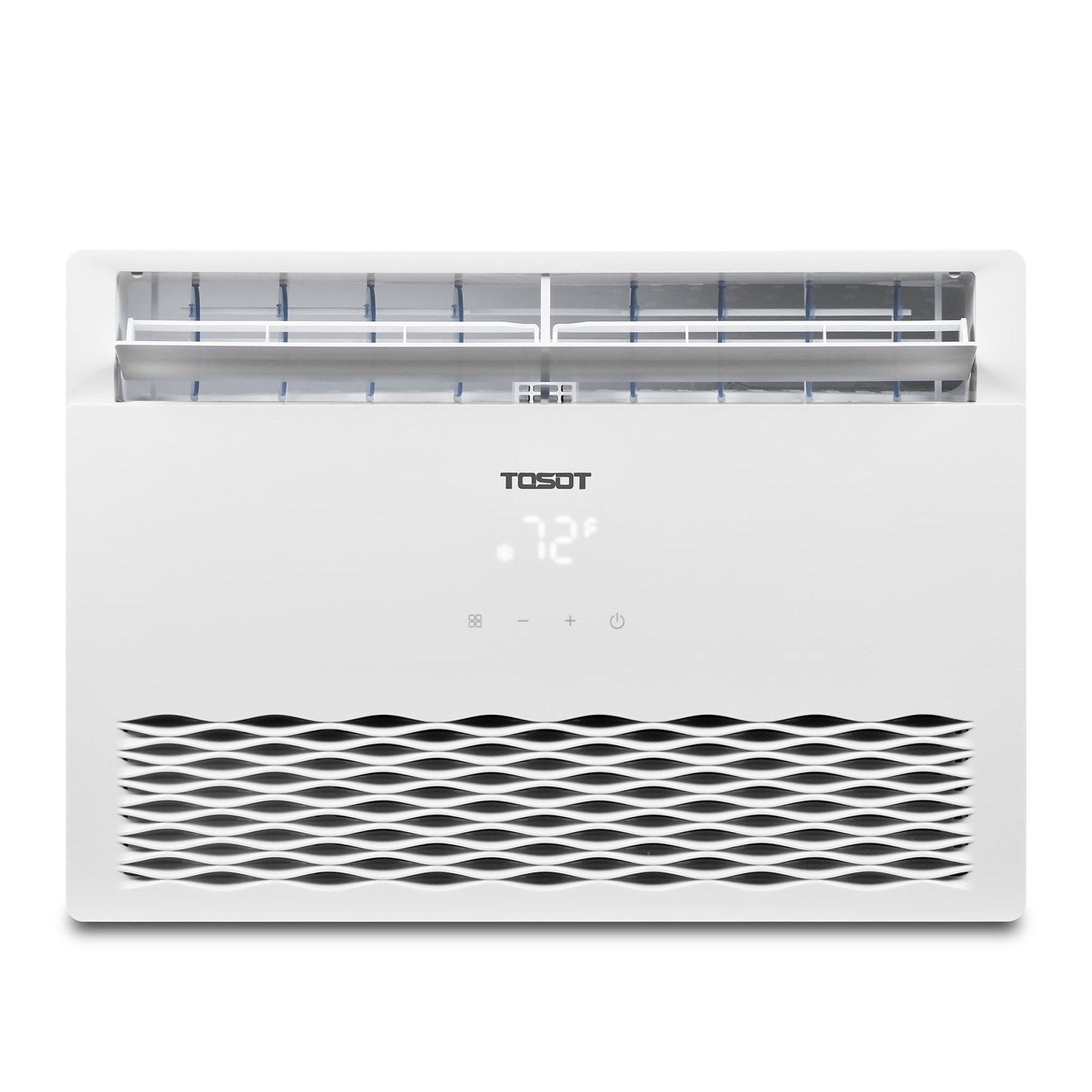

Chalet Series Window AC
Stay Cool, Be Chill






Feel the Instant Breeze






Easy Installation
All mounting accessories are included. This AC comes with a fixed chassis and is suitable for double-hung windows 26''-41'' wide and minimum 19'' high. All you need to do is to insert it into your window with the helpful video guide.



Safe, Green, and Efficient

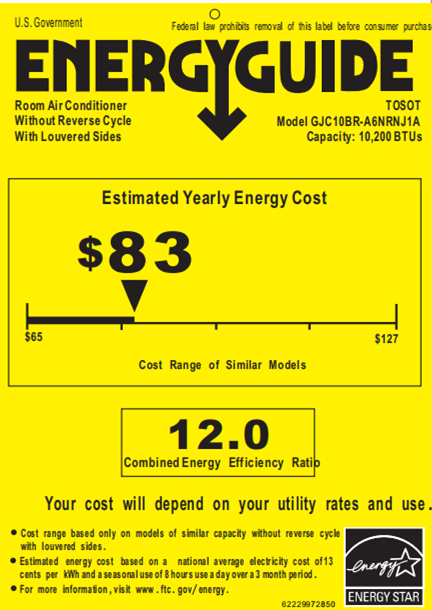

With UL approval and Energy-star certification, you can enjoy the cool air safely without worrying about high electric bills. Compared to R22 or R410A refrigerants, the R32 refrigerant this unit uses has a lower impact on global warming.

* Estimated annual energy cost is based on a national average electricity cost of 13 cents per kWh and seasonal use of 8 hours a day over a 3-month period. Your final cost will depend on your utility rates and actual uses.



Better Sleep
Sleep mode adjusts the temp every hour based on optimal human sleeping temperatures so you wake up feeling rested and refreshed.









What Size of Window AC You Need
Find Your Cooling Area
If your ceiling is higher than 8 feet, you may need to increase BTUs.

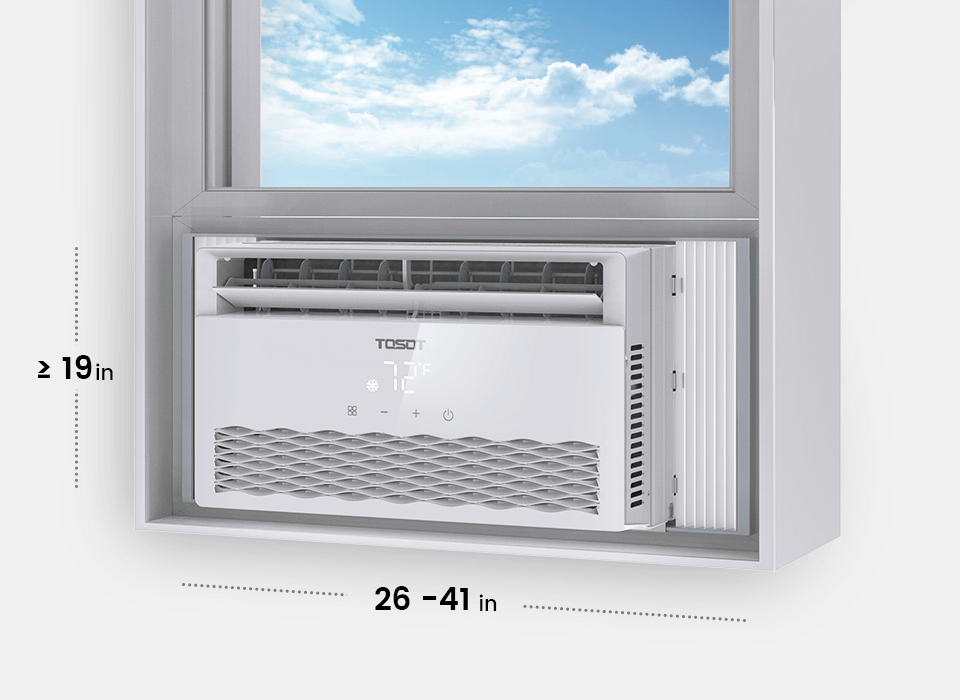

Confirm Window Type
Width (Min/Max): 26-41 inches
Height (Min): 19 inches

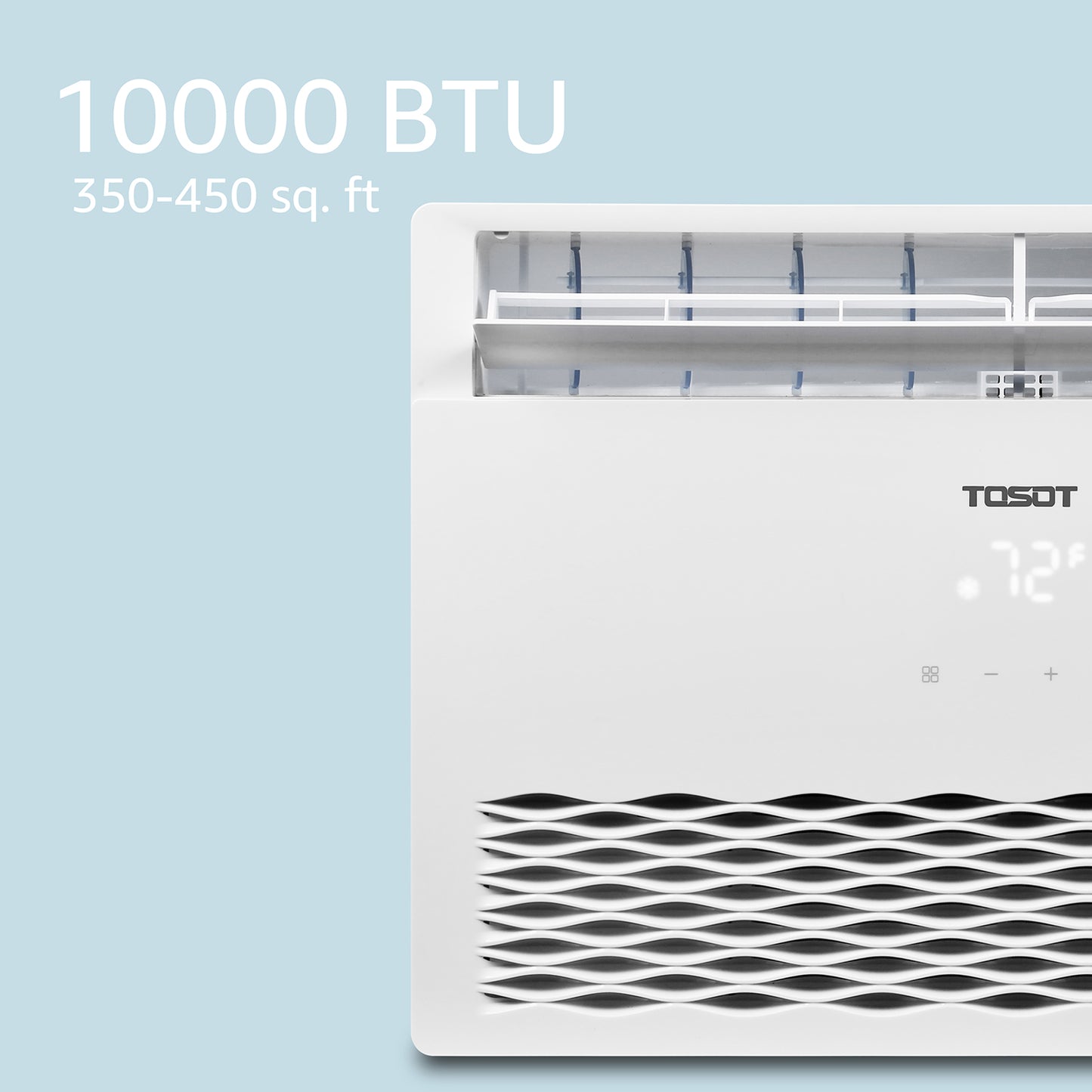

Match Room Size to BTUs

Determine Outlet Type
115V AC 15A

TECH SPECS
Cooling Capacity | 10,200 BTU/h |
---|---|
Power | 115V, 60Hz |
Rated Power | 1,030W, 9.0A |
Energy Efficiency Ratio (EER) | 12.0 |
---|---|
Dehumidifying Volume | 2.79 Pints/hour |
Sound Pressure Level (H/M/L) | 59/57/55 decibels |
Temperature Range | 61-86°F |
Cord Length | 4.9 ft |
---|---|

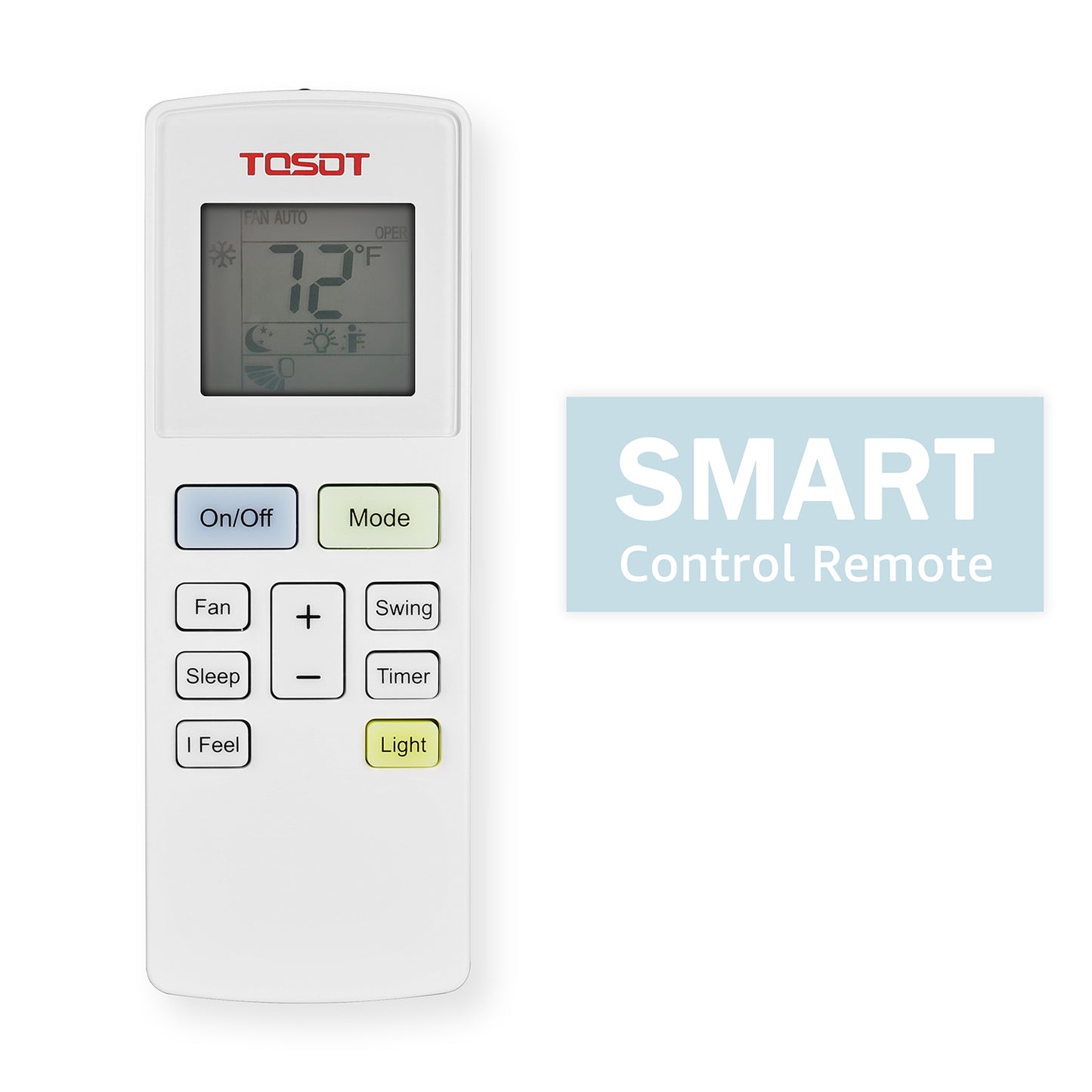

Control Type | Remote Control |
Window Requirements | Width (Min/Max): 26-41 inches
Height (Min): 19 inches |
