For full specifications and details, download the technical brochure.
PERFORMANCE
- Cooling Capacity (Btu/h):33600
- Heating Capacity (Btu/h): 34000
- EER(Btu/h)/w: 11.95
- COP(Btu/h)/w: 12.97
- SEER: 20
- HSPF: 8.5
- Airflow(H/M/L): 942/912/853 CFM
- Dehumidification (Pts/hr): 7.82
- Est. Cooling Area (Sq. Ft.): 1,800
- Voltage: 208~230V / 60Hz
- Rated Input(W):4000
- Rated Current(A): 20
- Min. Current (MCA) (A) :23
- Temperature Range (°F): 61-86
- Ambient Temperature (°F): -13-122
- Noise Level (H/M/L): 41/39/38decibels
DIMENSIONS & WEIGHTS
Indoor Unit
- Approximate Shipping Weight (lbs): 108
- Approximate Net Weight (lbs): 94.8
- Shipping Dimensions (W×H×D) (inches): 61.1x30.2 x12.1

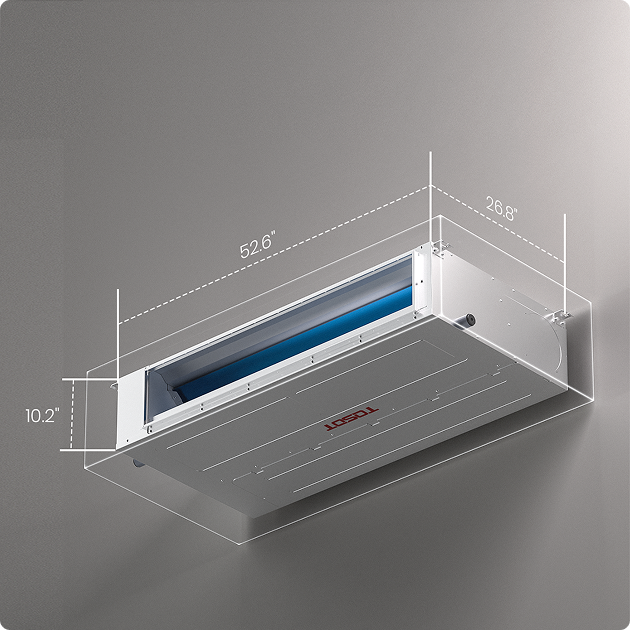

- Unit Dimensions (W×H×D) (inches): 52.8 x 25.8 x 10.2
Outdoor Unit
- Approximate Shipping Weight (lbs): 133.4
- Approximate Net Weight (lbs): 122.4
- Shipping Dimensions (W×H×D) (inches): 42.4 x 30.9x 18.9
- Unit Dimensions (W×H×D) (inches): 39.4 x 29.3 x 16.8
Line Set Length
- Copper Line Set(ft): 16
- Signal Cable(ft): 19
- Power Cord(ft):19
User Manual: Download

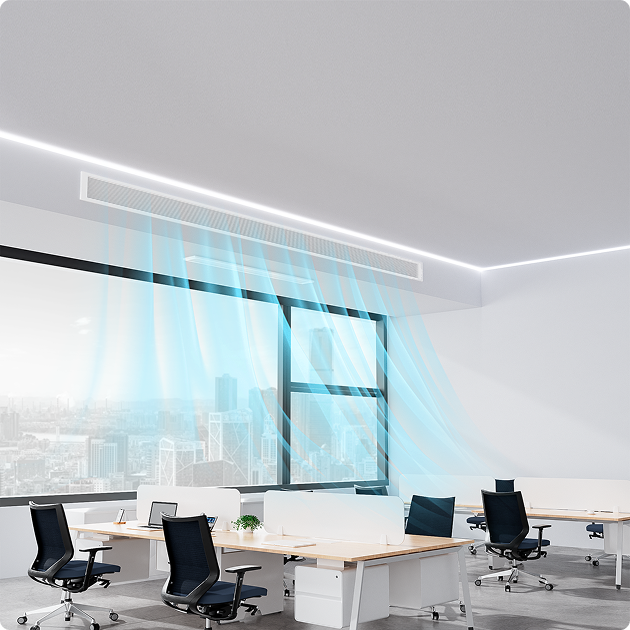

Cooling And Heating For Large Spaces
Large capacity with max 1,324 CFM airflow, great for residential and light commercial use.
Suitable for open layouts & large home spaces.

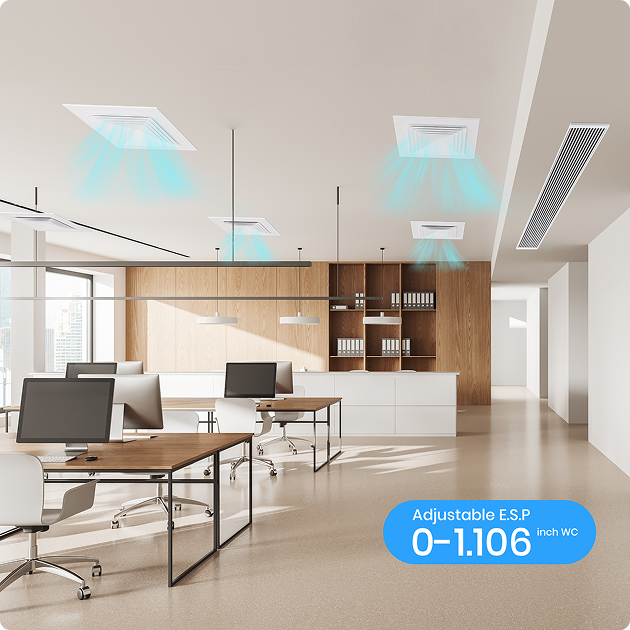

High Static Pressure Design
Designed for larger spaces and extended duct runs, this unit delivers adjustable external static pressure up to 1.106 in. WC (275 Pa). Ideal for high-ceiling areas and ductwork with multiple branches or bends—perfect for large residences and light commercial environments.

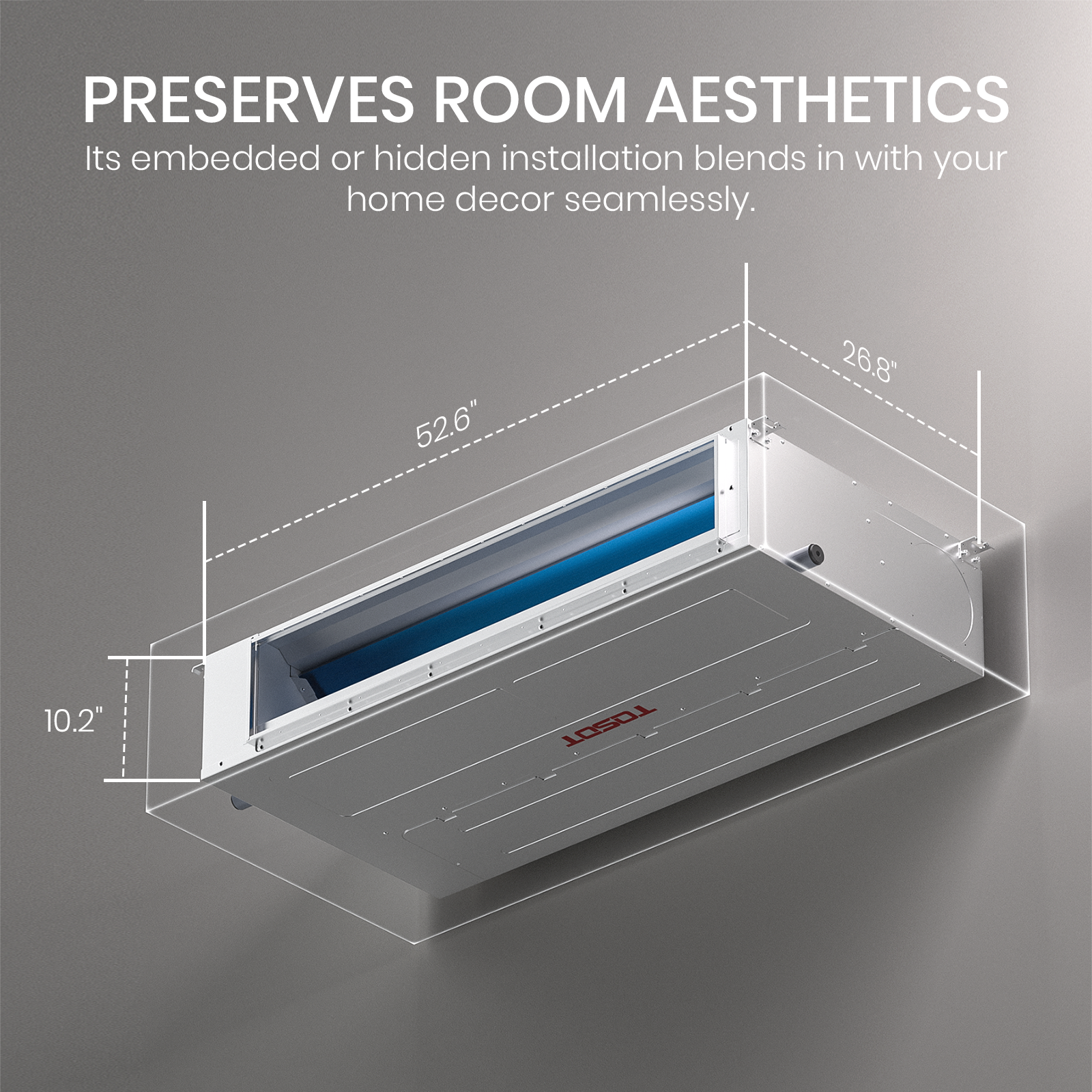

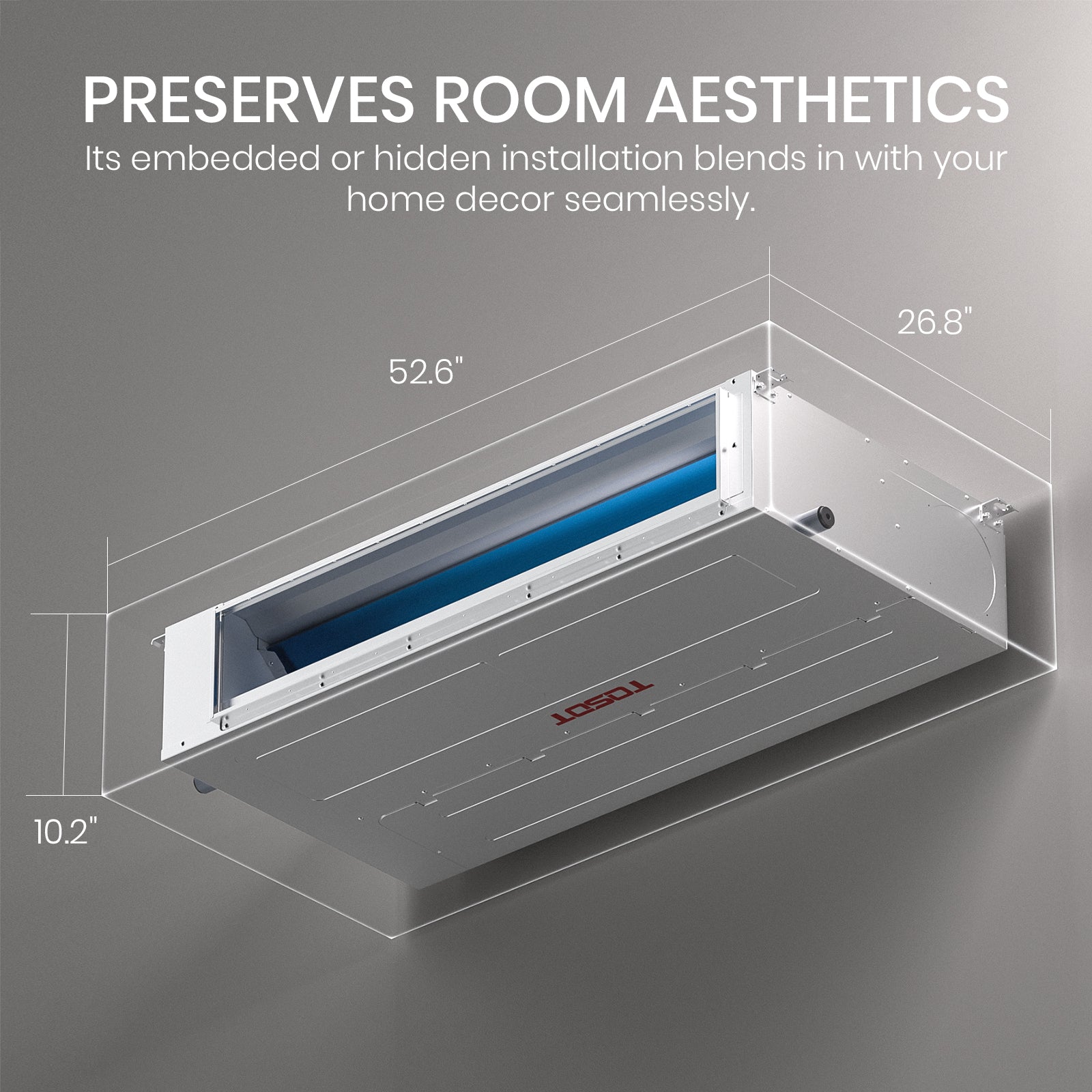

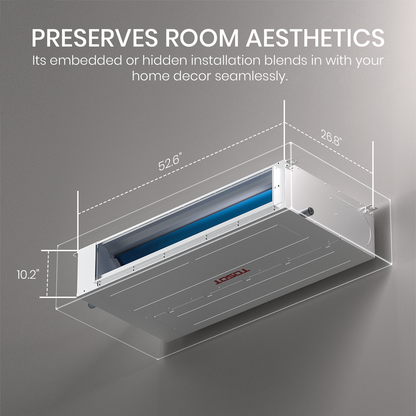

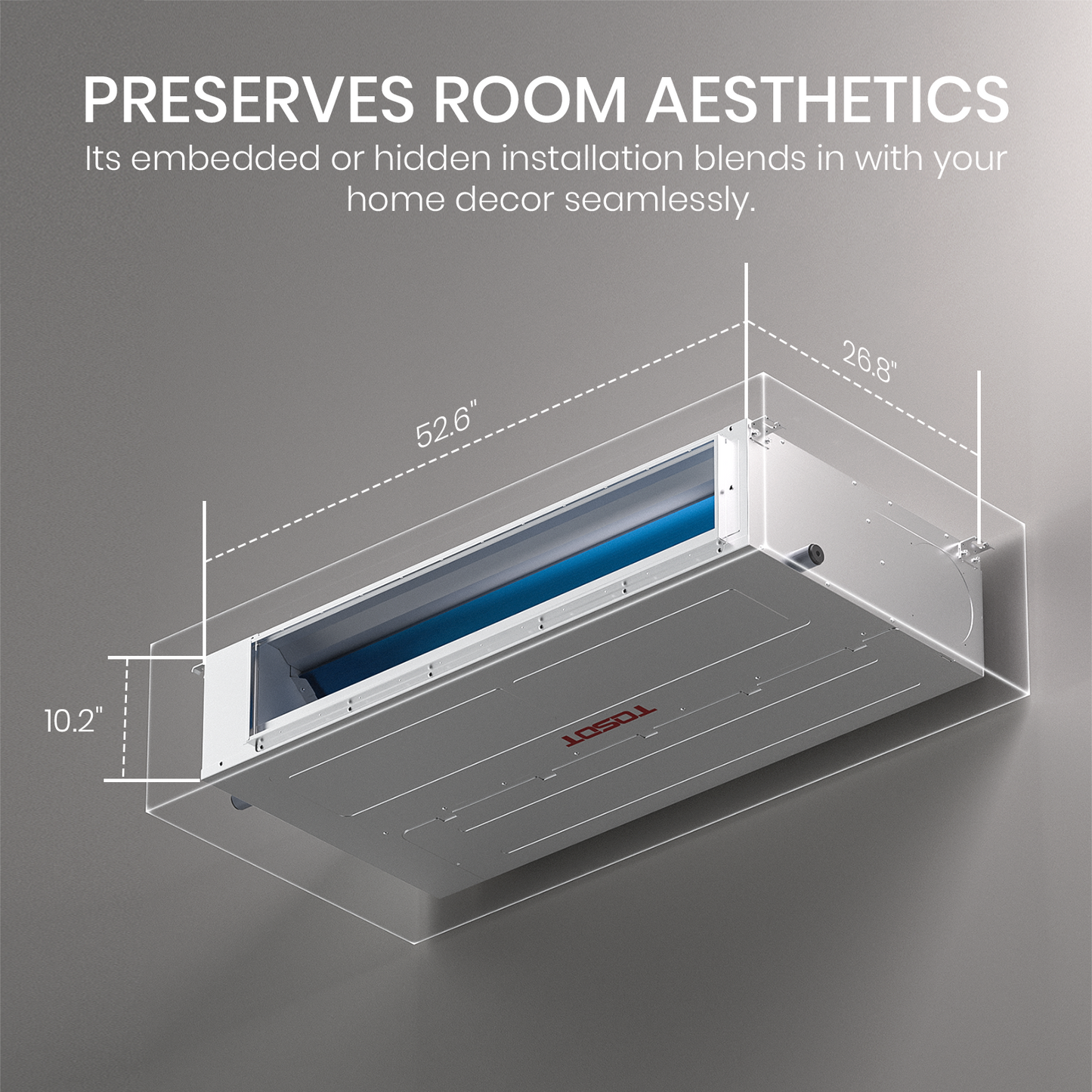

SPACE-SAVING DESIGN
Embedded or hidden installation seamlessly blends in with your home decor.

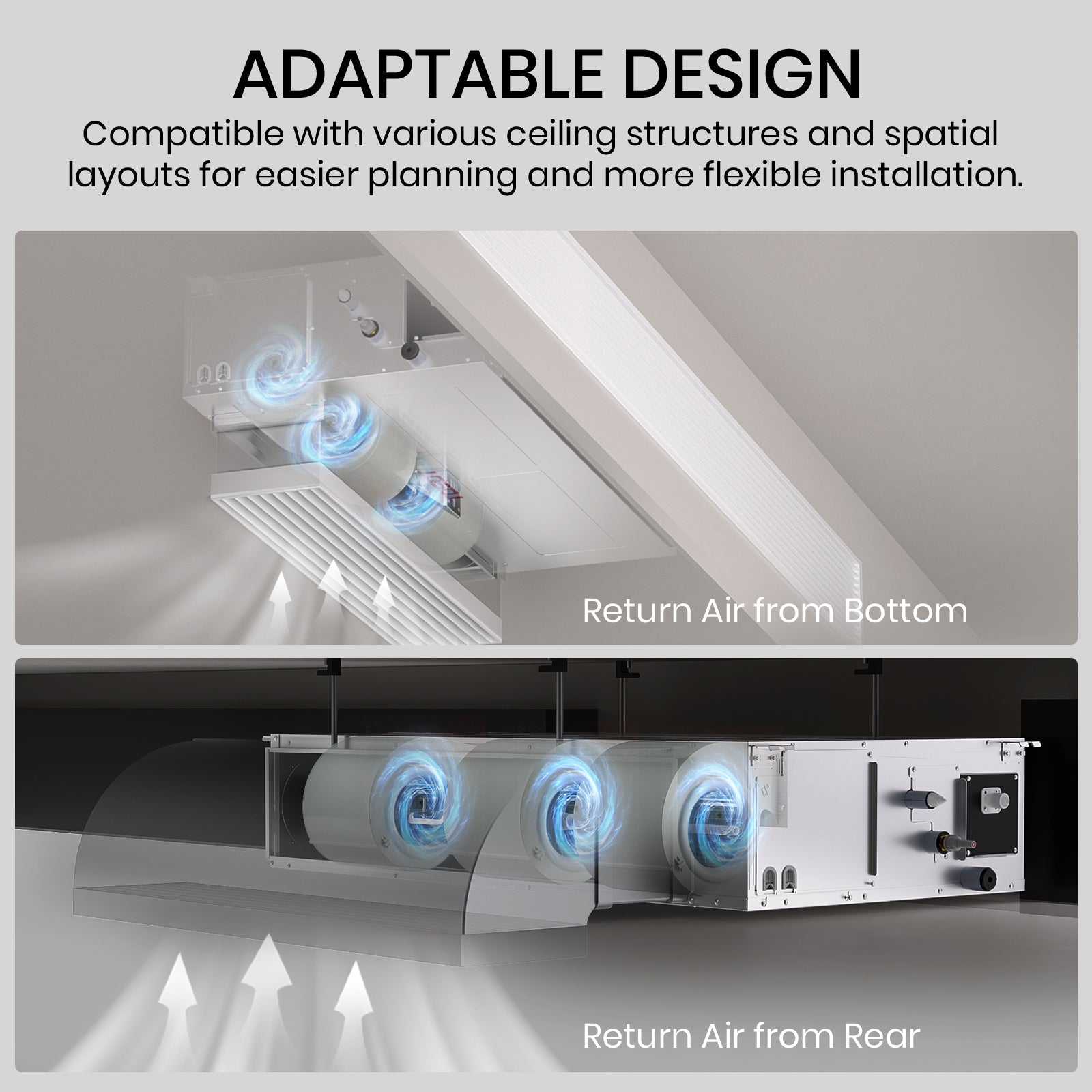

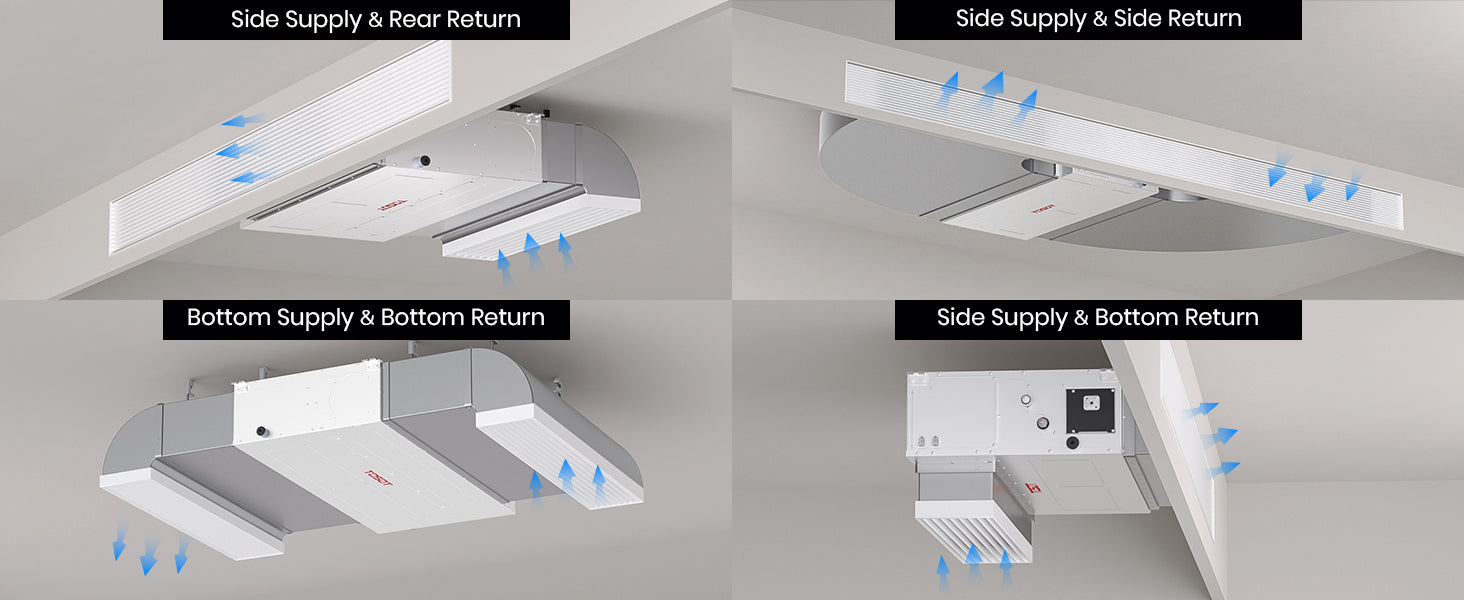

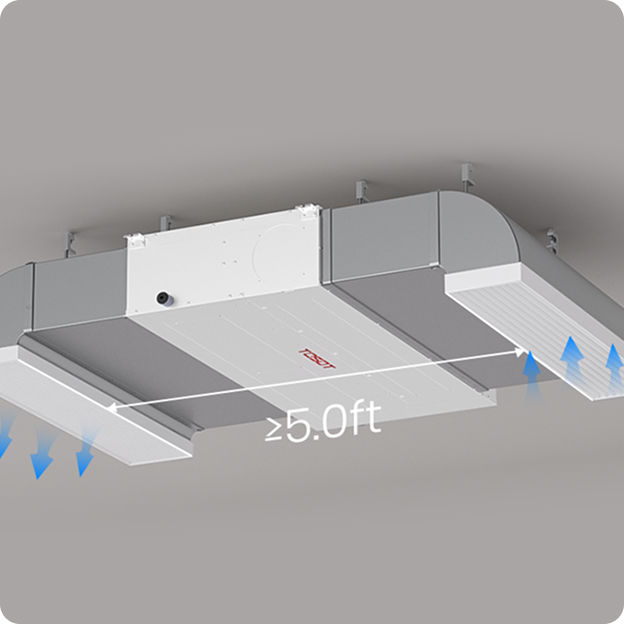

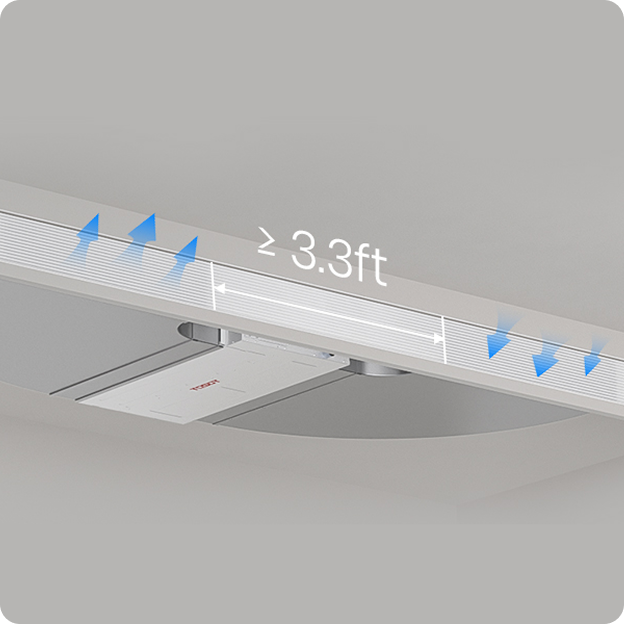

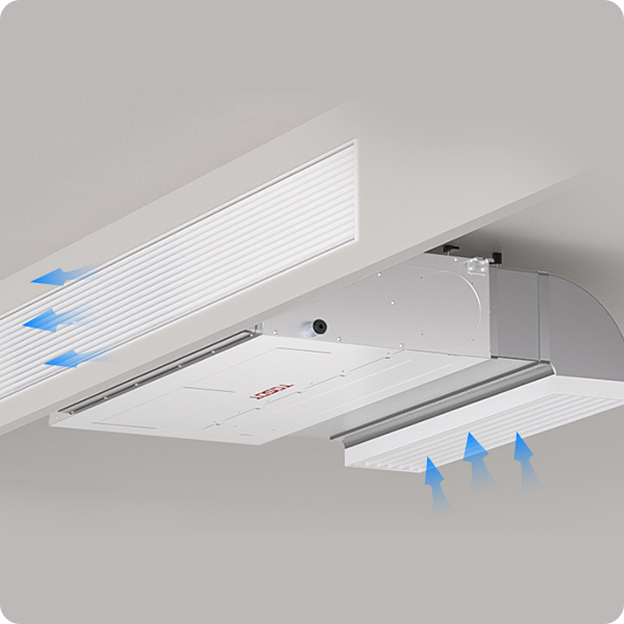

Flexible Installation

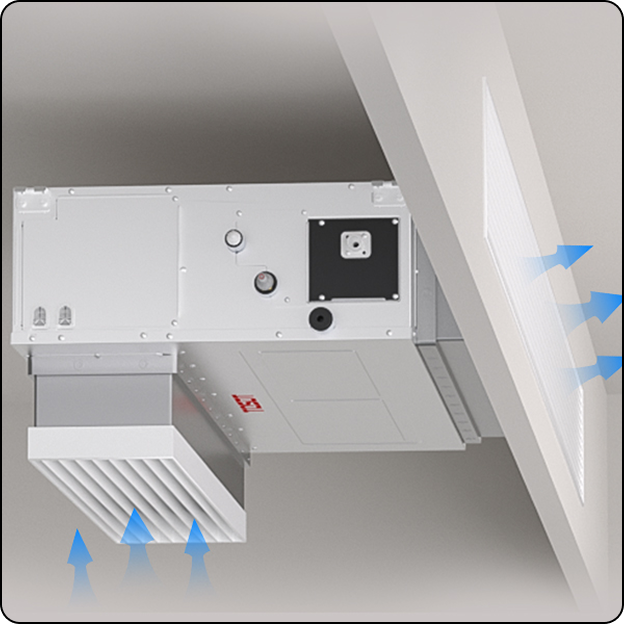

Side Discharge & Bottom Return
Side Discharge & Rear Return
Side Discharge & Side Return
Bottom Discharge & Bottom Return

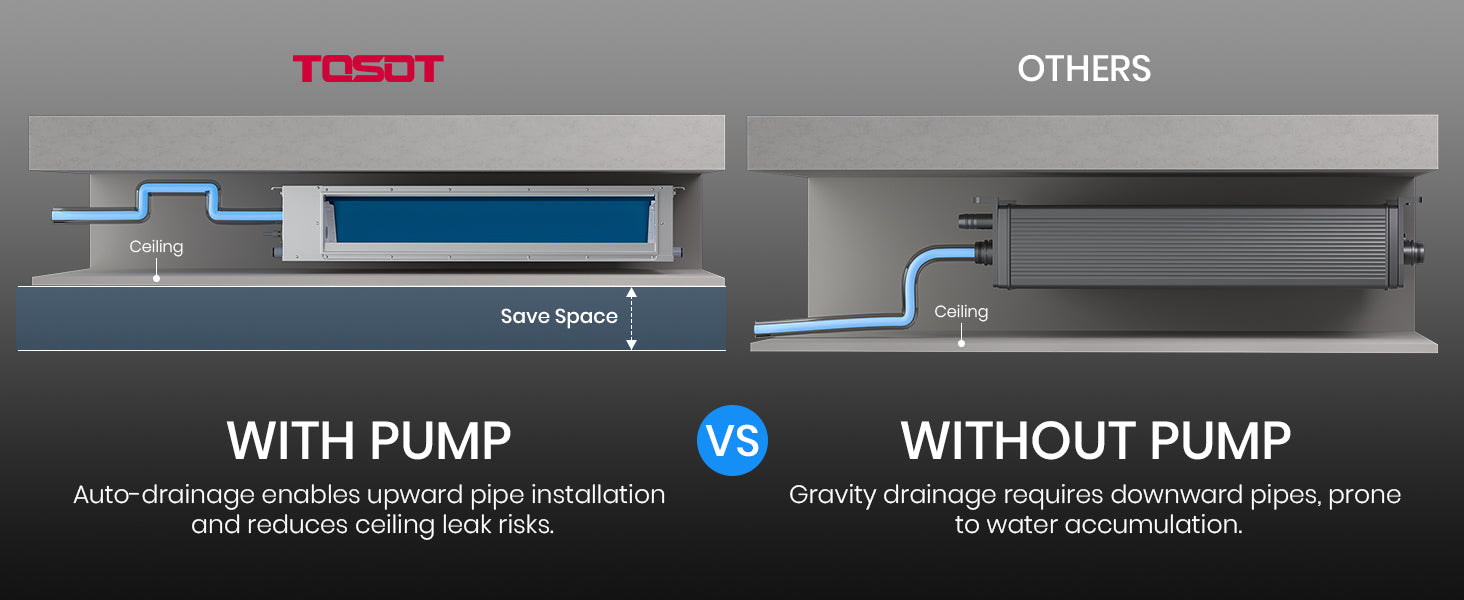

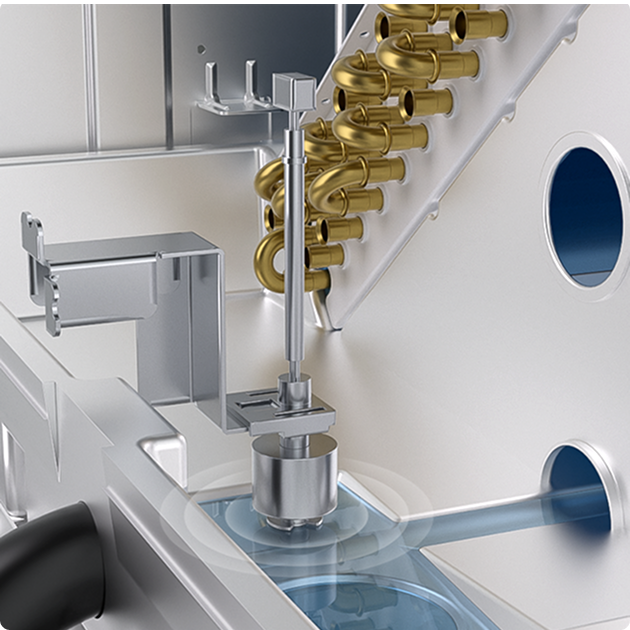

Float Switch Design
The built-in float switch monitors water condensation levels in real time. When water reaches a critical height, it triggers an alarm on the wired controller. It works with the drainage pump to ensure proper water discharge and prevent potential ceiling damage.
Refrigerant Leakage Sensor
A built-in detector monitors indoor refrigerant concentration levels in real time. If a leak occurs, it triggers an alert on the wired controller, warning you of potential hazards. It helps prevent exposure to refrigerant gases and allows for prompt maintenance.

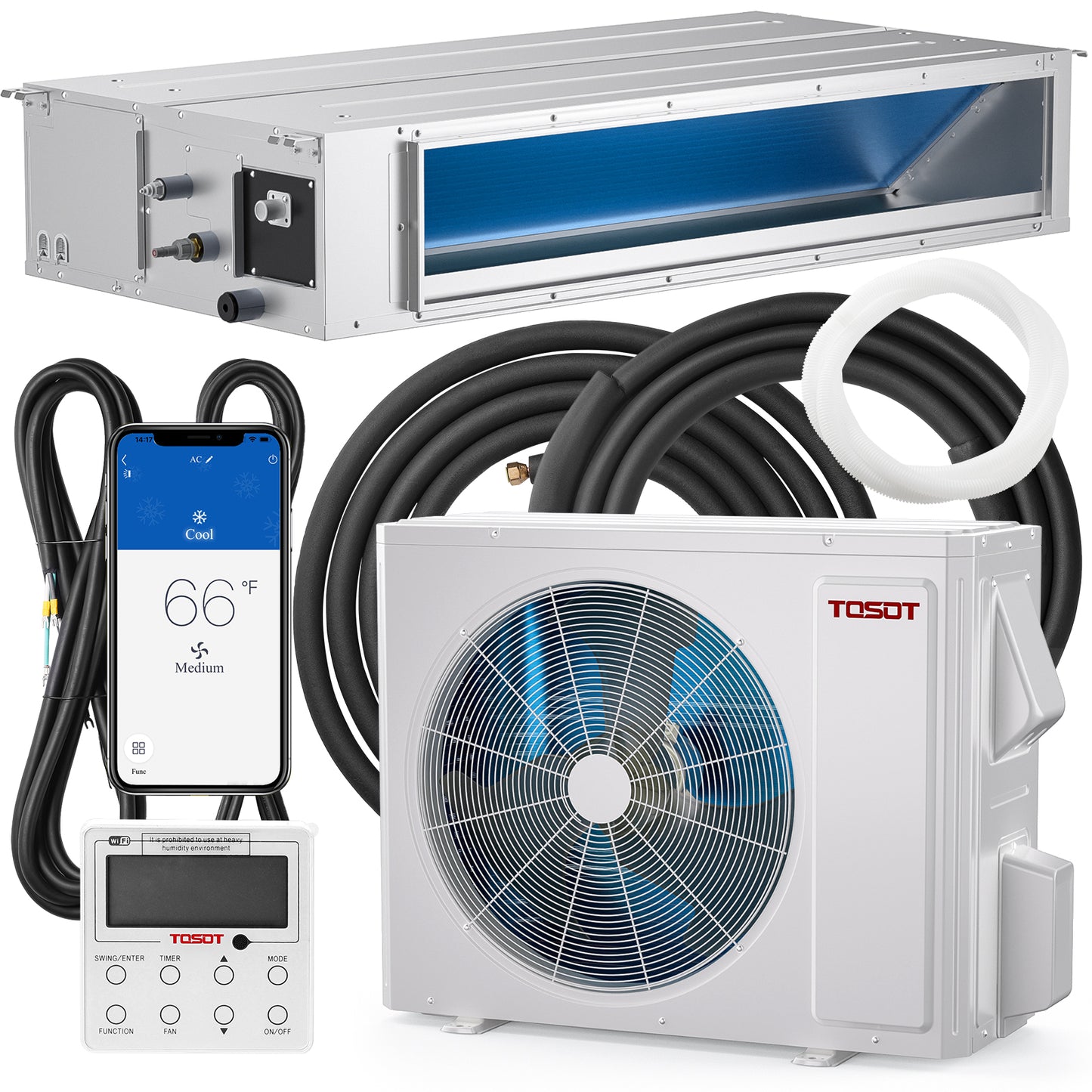

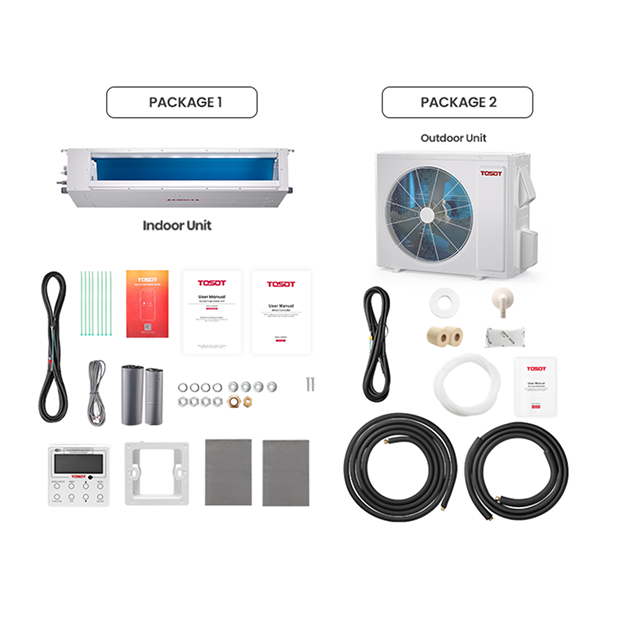

All necessities are inclued
The TOSOT Cosmo ducted mini-split AC system comes with an accessory kit, as shown in the image, to assist with installation. The ducts and grille are not included. If you have any questions about the included parts, feel free to contact us.
Join Our DIY Community
5 Year Standard Warranty
Cover both the compressor and parts
With over 30 years of manufacturing experience in the AC industry, we always strive to provide the highest quality product to all our customers. If you need installation services, please contact support@tosotdirect.com
