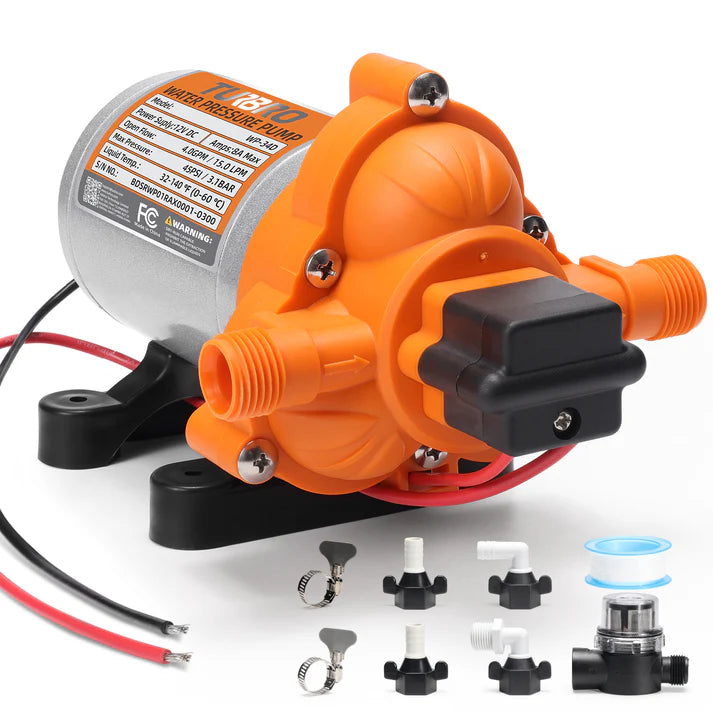

Rotorua RV Diaphragm Water Pressure Pump

Regular price $69.99
Sale price $69.99 Regular price $79.99

SKU: 707-RVWQ-WP34D

Key Features:

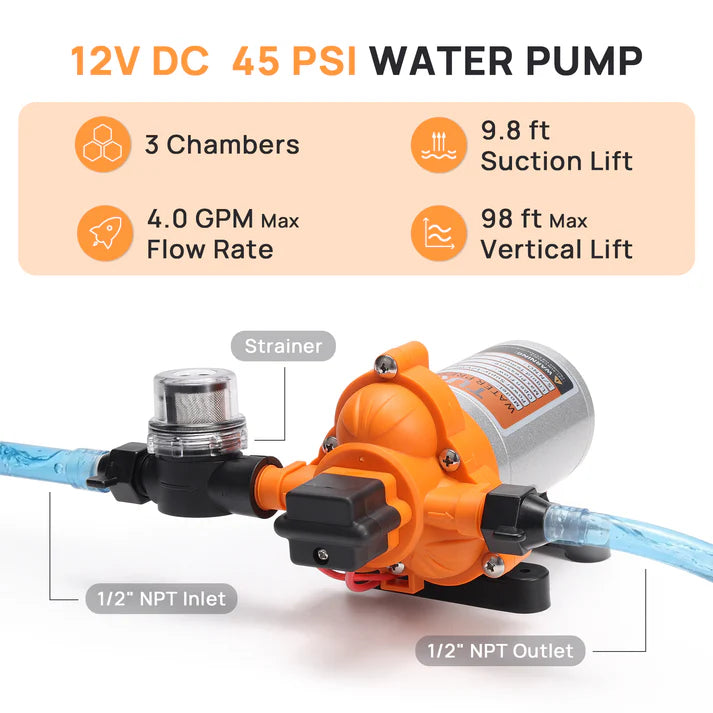

  • Strong Water Flow: Up to 4.0 GPM with 45 PSI for steady water supply.
  • Self-Priming: Draws water from tanks or buckets with 9.8 ft suction lift.

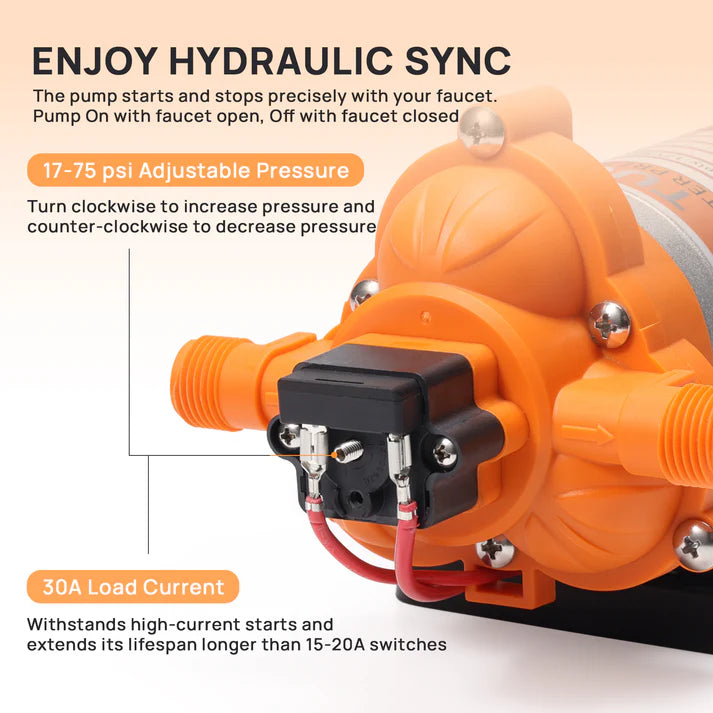

  • Auto On/Off: Pressure switch starts and stops automatically with faucet use.
  • Durable Build: Copper motor, TPV impeller, and stainless steel seal for lasting use.
  • Built-In Protection: Prevents backflow, dry running, and overheating.
  • Portable Power: Works with 12V batteries or vehicle outlets for RV, marine, and camping use.

Size
View full details
  • Features
  • Tech Specs
  • Reviews
  • FAQ

Technical Specification

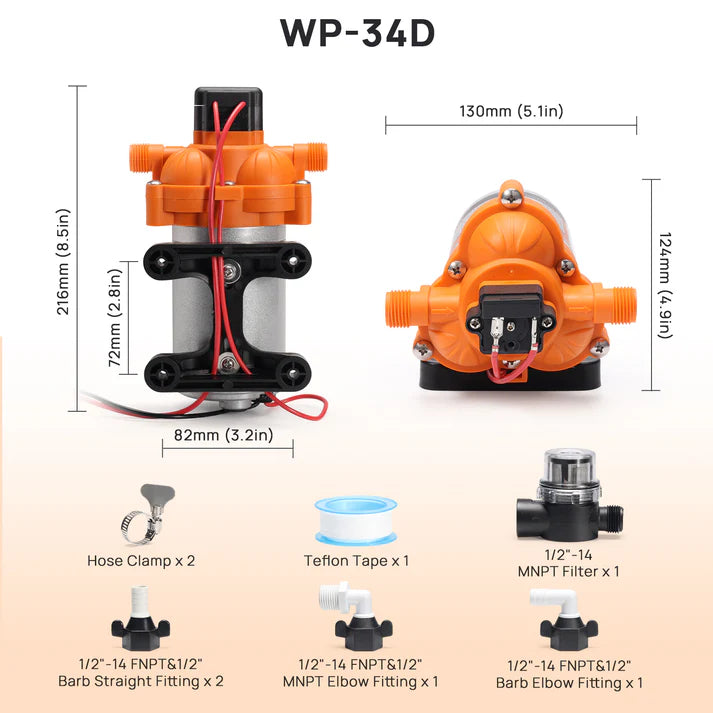

Model​

WP-34D​

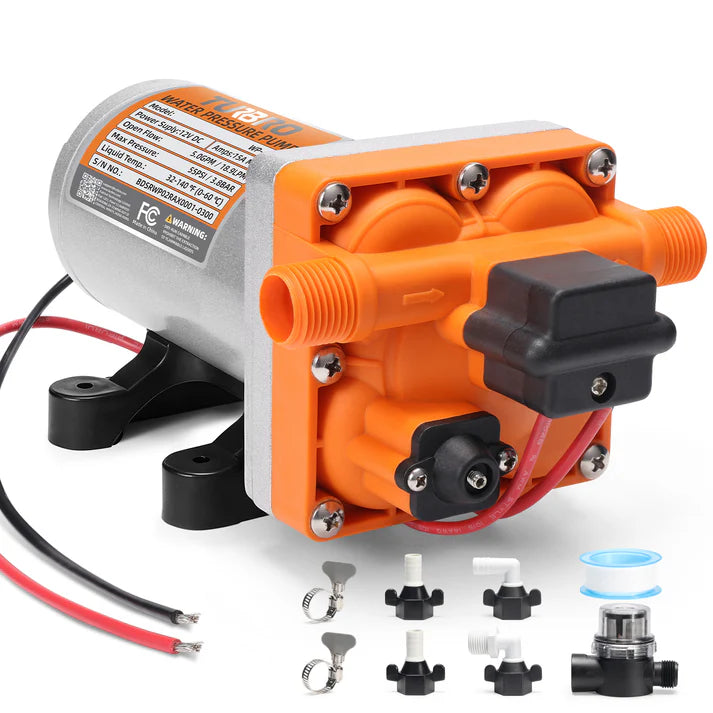

WP-45D​

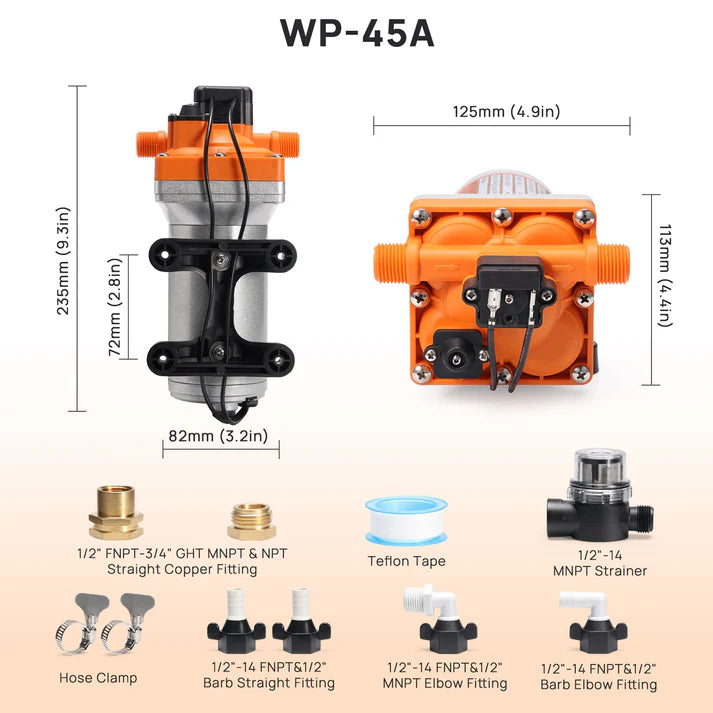

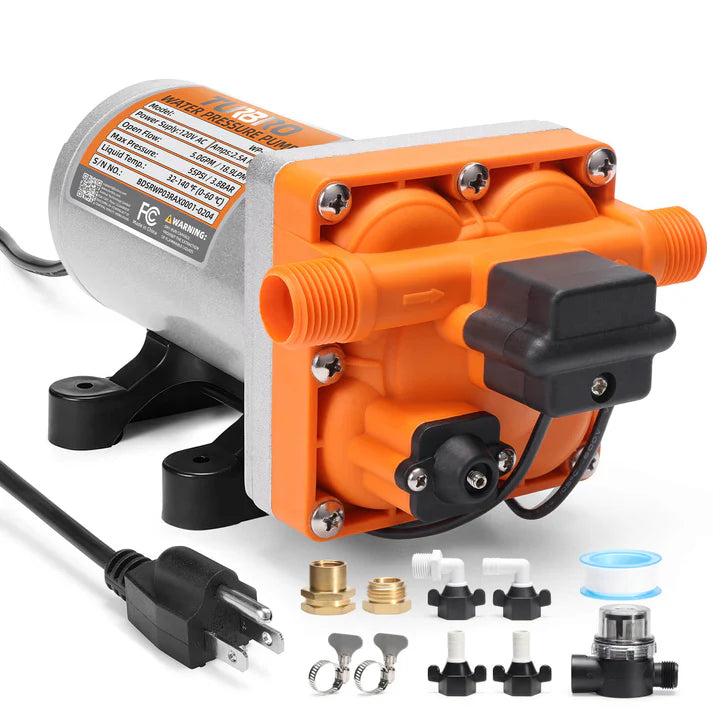

WP-45A

Power Supply

DC 12V

DC 12V

AC 120V / 60Hz

Max. Current

8.0 A

15.0 A

2.5 A

Max. Pressure

45 psi

55 psi

55 psi

Adjustable Pressure Range

17-75 psi

40-80 psi

40-80 psi

Max. Flow Rate

4.0 GPM

5.0 GPM

5.0 GPM

Max. Vertical Lift

98 ft

128 ft

128 ft

Suction Lift

9.8 ft

9.8 ft

9.8 ft

Inner Overheat Protection

248°F

248°F

248°F

Liquid Temperature

32-140°F

32-140°F

32-140°F

Number of Chambers

3

4

4

Bypass Switch

NO

YES

YES

Mainly Used For

Yacht, RV, Camper, etc.

Yacht, RV, Camper, etc.

Kitchen, Bathroom, Garden Sprinkler, etc.





Q: Can I install it by myself?

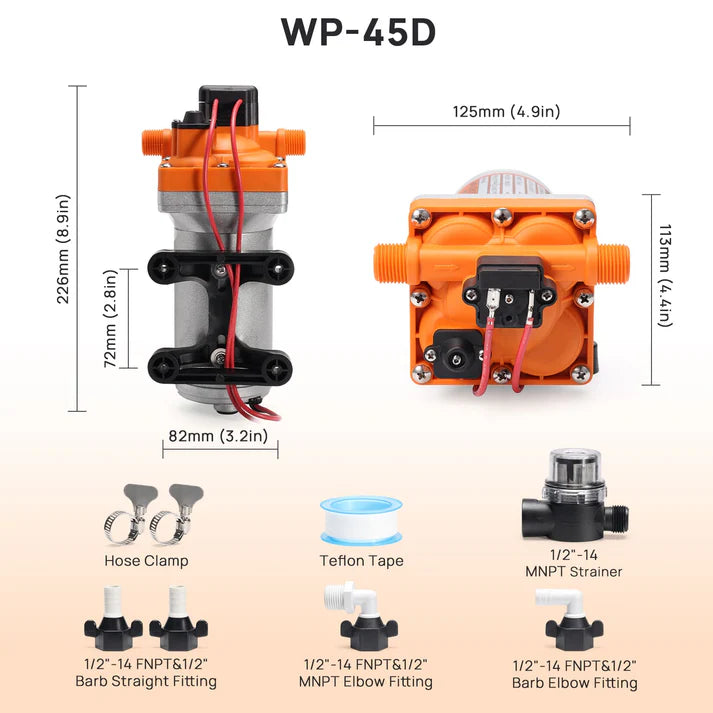

A: Yes. It’s easy to install. Simply assemble the strainer, barbed adapters, fittings, water pipes (not included in the package), and clamps according to the instructions, and then secure the pump to a stable location.



Q: Can it be mounted both vertically and horizontally?

A: Yes. The pump may be mounted in any position. If mounted vertically, the pump head should be in the down position to avoid leakage into the motor casing in the event of a malfunction.



Q: Can it run dry without damage?

A: Yes. The water pump features dry-run protection. Short-term dry running will not damage the pump.

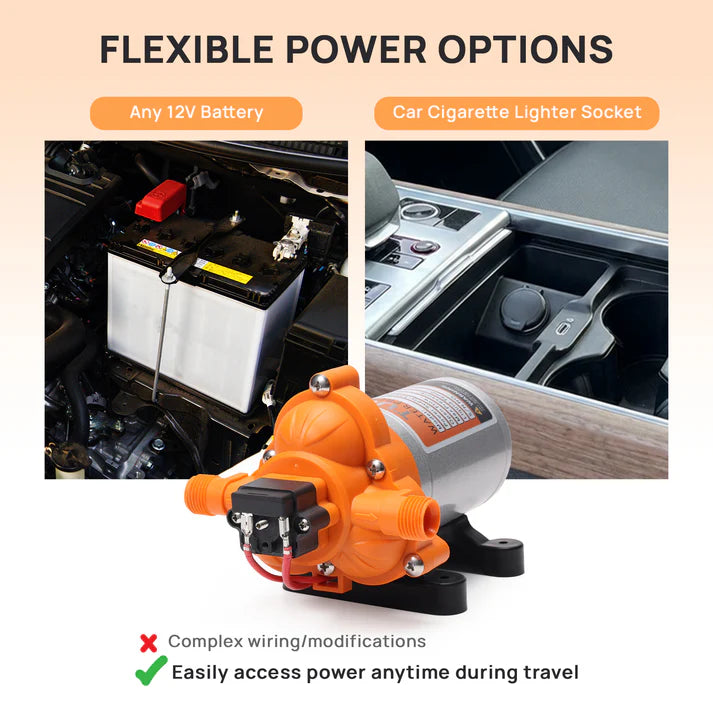

Q: Can I run it from a cigarette lighter?

A: Model WP-45A can only be powered by AC 120V / 60Hz sockets. Models WP-45D and WP-34D can be powered by any 12V battery or car cigarette lighter socket.



Q: Can it handle hot water applications?

A: The water pump can handle water temperatures ranging from 32 to 140°F.



Q: Is it suitable for drinking water systems?

A: Yes. The internal diaphragm is made of materials suitable for drinking water contact.
